点击放大查看

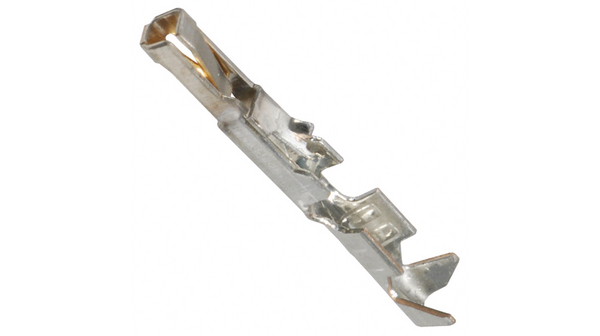

90119-2110
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 22-24 FEM CRIMP TERM Crimp contact terminal,22-24 awg CONTACT, SOCKET, 22-24AWG, CRIMP CONTACT, FEMALE, 24-22AWG, CRIMP c-grid Terminals 22-24 FEM CRIMP TERM Crimp socket 3 A Female 24...22 AWG, 90119-2110, Molex Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901192110 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | :350V | 最大额定电流 | :3A |
机械参数
| 长度 | 15.65 mm | 重量 | 0.0008 |
| 包装方式 | Bag | 绝缘类型 | Not Insulated |
| 导线线规 | 24-22 | 端接方式 | Crimp |
| 触头类型 | Signal | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 接触件端接 | :Crimp | 线规或范围 - AWG | :24AWG |
| 线规或范围 - mm² | :0.4mm² | 外径-未扩张 | :0.64mm |
产品信息
| 连接器性别 | SKT | 系列 | 90119 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Contacts |
| 适用产品/相关产品 | :C-Grid III? Crimp Terminal Housing | ||
文档与媒体
