90119-2111
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901192111 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | 3A |
机械参数
| 长度 | 15.65 mm | 重量 | 0.005 |
| 包装方式 | Bag | 绝缘类型 | Not Insulated |
| 导线线规 | 24-22 | 端接方式 | Crimp |
| 触点尺寸 | :22 | 安装类型 | crimped |
| 插针或插孔 | Socket | 连接器类型 | female |
| 接触镀层 | Gold | 封装形式 | in bulk |
| 触头材料 | Phosphor Bronze | 包装数量 | 5000 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 接触件端接 | Crimp |
| 镀层厚度（通用） | 0.76µm | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | :24AWG | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 5000 | 连接器性别 | Female |
| 系列 | 90119 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contacts | 适配器系列 | C-Grid III |
| 单元数量 | 900 | 适用产品/相关产品 | :C-Grid III Modular Crimp Housing 90156, 90123, 90142, 90143, 90160 |
文档与媒体
相关型号
0901420006
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .100" DUAL Plug; wire-board; C-Grid III; female; PIN:6; w/o terminals; 2.54mm
0901430118
molex
Conn Housing RCP 18 POS 2.54mm Crimp ST Bag CONN RCPT HSG W/POL BTTN 18POS
0901560170
molex
Conn Housing RCP 30 POS 2.54mm Crimp ST Bag CONN HSG SR FL POLZ 30POS
0901430110
molex
Conn Housing RCP 10 POS 2.54mm Crimp ST Bag CONN RCPT HSG W/POL BTTN 10POS
0901600160
molex
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG DR FL POLZ 60POS
0901560143
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Bag CONN HOUSING 3POS .100" CRIMP
90156-0148
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Bag CONN HOUSING 8POS .100" CRIMP 8 way single row locking housing Headers & Wire Housings 8P HOUSING HOUSING FRICTION LOCK, 8WAY Crimp housing 1 x 8P, 90156-0148, Molex Molex C-GRID III 系列 2.54mm 节距 8 路 直 母 压接连接器外壳
0638190200
Molex
Hardware Tools, Hand Crimp Tool Ensures Complete Crimps TOOL HAND CRIMP 22-28AWG
0901430104
Molex
CONN HOUSING RCP 4 POS 2.54MM CRIMP ST BAG CONN RCPT HSG W/POL BTTN 4POS
90123-0112
molex

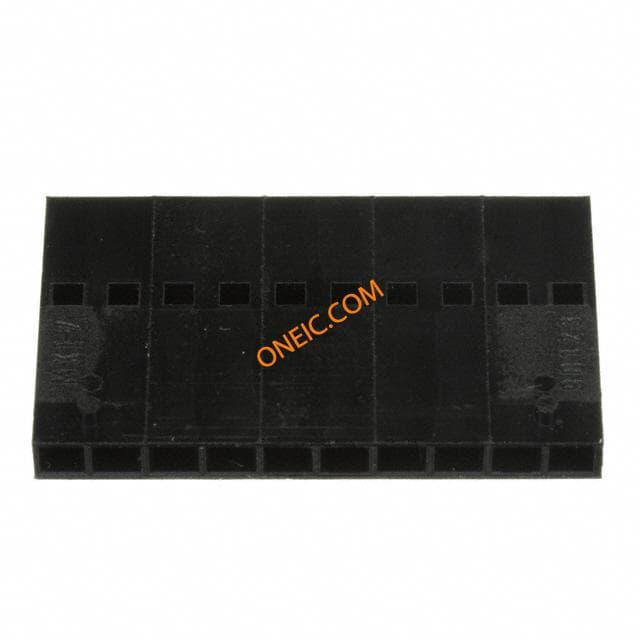

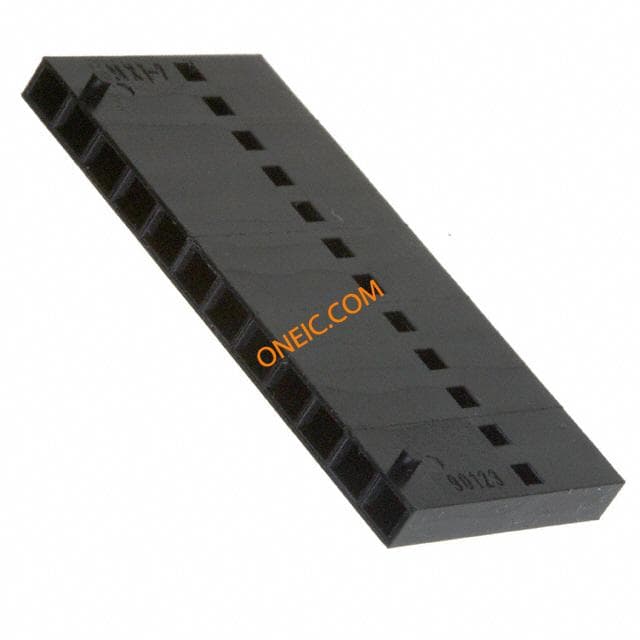

Conn Housing RCP 12 POS 2.54mm Crimp ST Bag CONN HOUSING 12POS .100" SINGLE 12 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 12P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 12 Circuits Crimp housing 1 x 12P, 90123-0112, Molex Molex C-GRID III 系列 2.54mm 节距 12 路 直 母 压接连接器外壳
