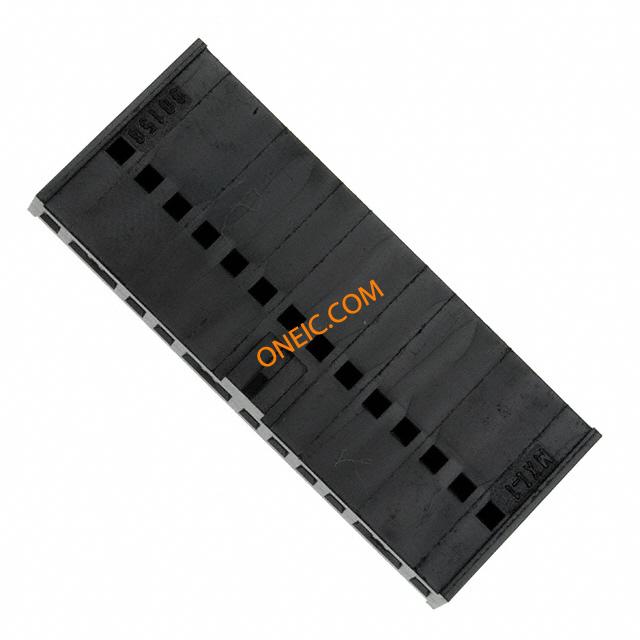

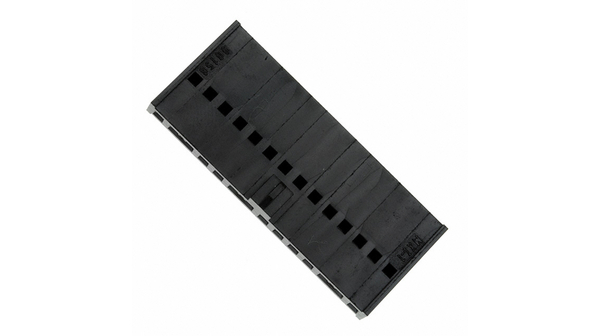

90156-0154
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 14POS .100" CRIMP Crimp Housing 2.54mm C-Grid III,1row,14w Headers & Wire Housings 2.54MM CGRIDIII HSG 14P SR CRIMP Conn Housing F 14 POS 2.54mm Crimp ST Cable Mount Bag Crimp housing 1 x 14P, 90156-0154, Molex Molex C-GRID III 系列 2.54mm 节距 14 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901560154 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 极数 | 1 x 14 | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 5.35mm |
| 长度 | 36.62mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 连接器样式 | Free hanging/cable mount |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
| 第一连接器极性 | Female | ||
产品信息
| 备注 | Contacts Not Provided | 设计类型 | Crimp connector housing, single row |
| 连接器性别 | Female | 系列 | 90156 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 基础产品编号 | 90156 | 适用产品/相关产品 | C-Grid III Connector |
