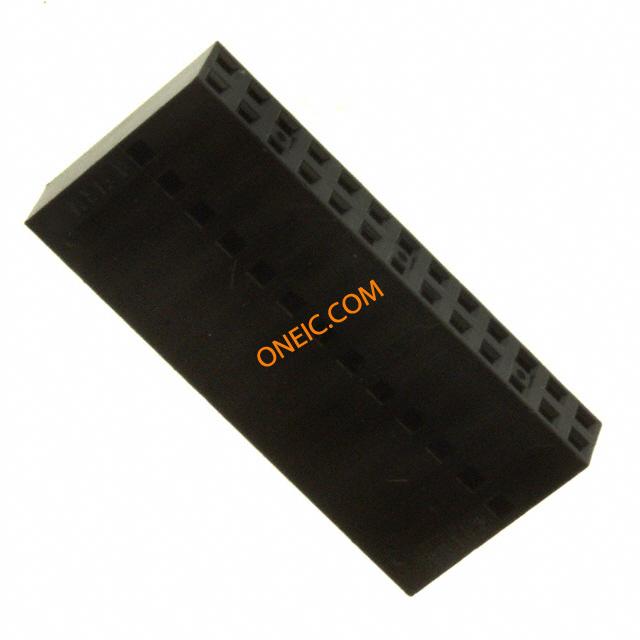

90143-0026
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSNG 26POS .100" DL CRIMP Headers & Wire Housings 2.54MM CGRIDIII HSG 26P DR W/O POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing, Dual Row, 26 Circuits |
| 分类 |
商业参数
| 商标名 | C-GRID | 零件号别名 | 0901430026 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polyphenylene Oxide (PPO) |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 26 | 接触件端接 | Crimp |
| 位数 | 26 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | 90143 |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

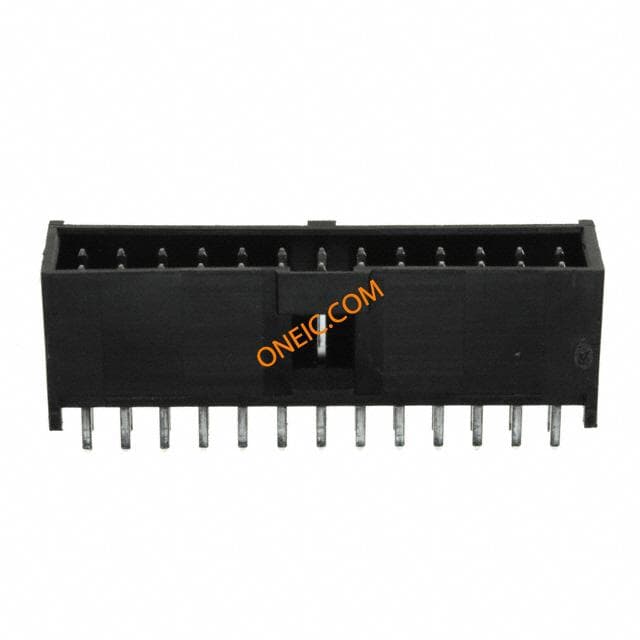

90130-1126
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 26POS .100" STR TIN Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P V DR SHRD TIN Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔

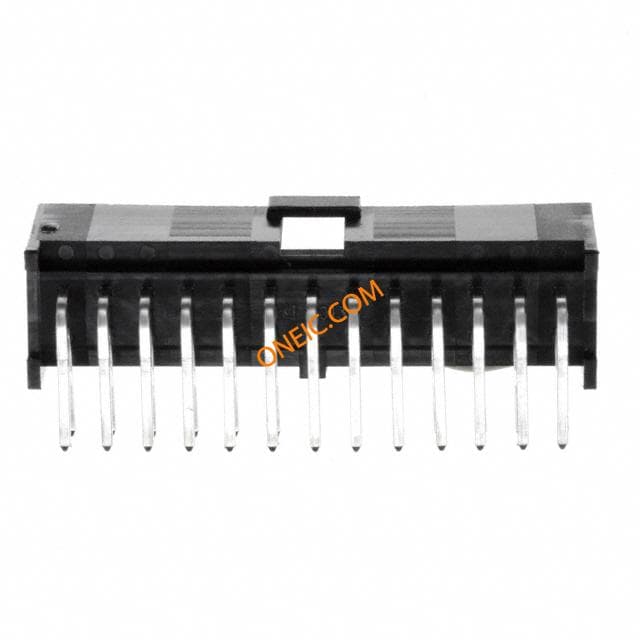

90130-3126
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100" R/A TIN Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P R/A DR SHRD TIN C-GRID SHRD HDR DR RA TN-A 26/26 Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

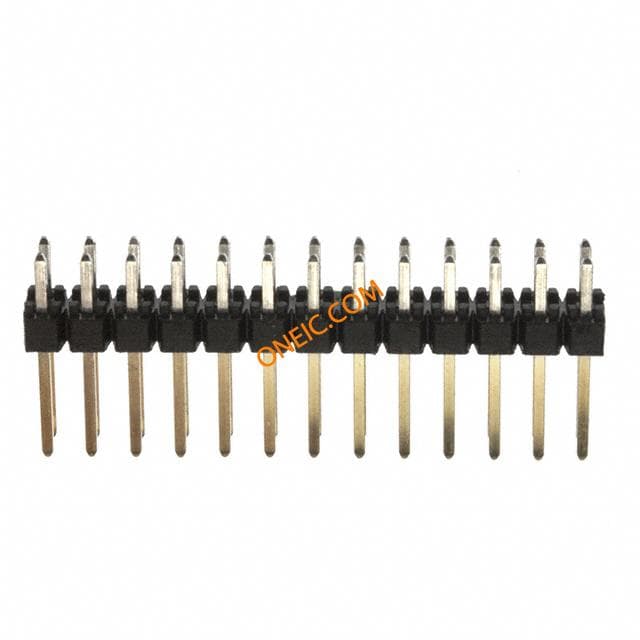

90131-0773
Molex Connector Corporation
CONN HEADER 26POS .100" STR GOLD Molex 90131 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings C-GRID III 26 CKT HE Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONNECTOR, HEADER, THT, 2.54MM, 26WAY Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔

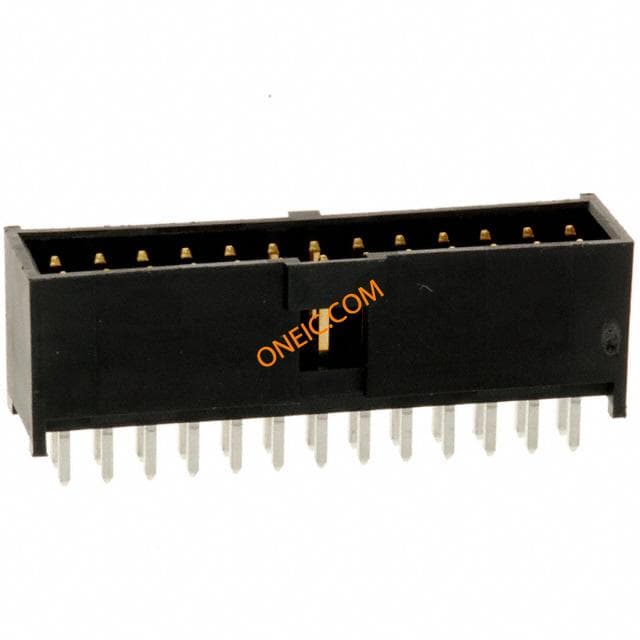

90130-1226
Molex Connector Corporation
CONN HEADER 26POS .100" STR GOLD Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P V DR SHRD AU-E Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 2ROW, 26WAY PCB header 2 x 13P, 90130-1226, Molex Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔

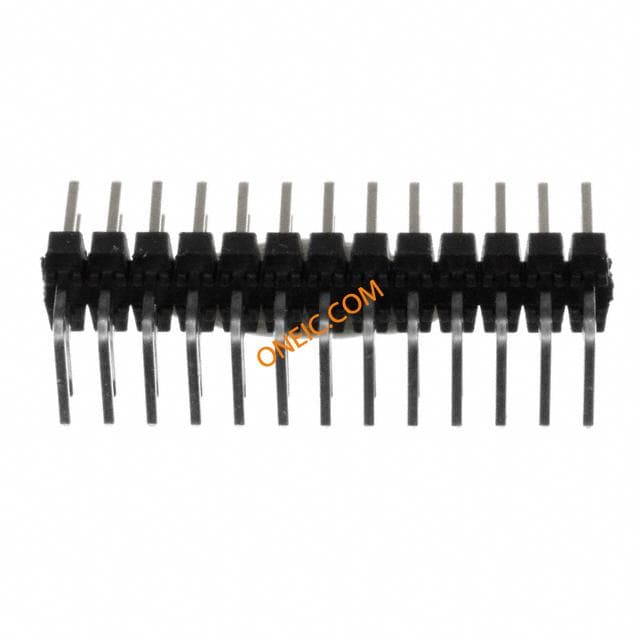

90122-0773
Molex Connector Corporation
CONN HEADER 26POS .100" R/A GOLD Headers & Wire Housings 2.54MM CGRIDIII HDR 26P R/A DR SEL AU Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray
90131-0133
Molex Connector Corporation
CONN HEADER 26POS .100" STR TIN Molex 90131 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P VERT DR TIN Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray Pin header 2 x 13P, 90131-0133, Molex Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔

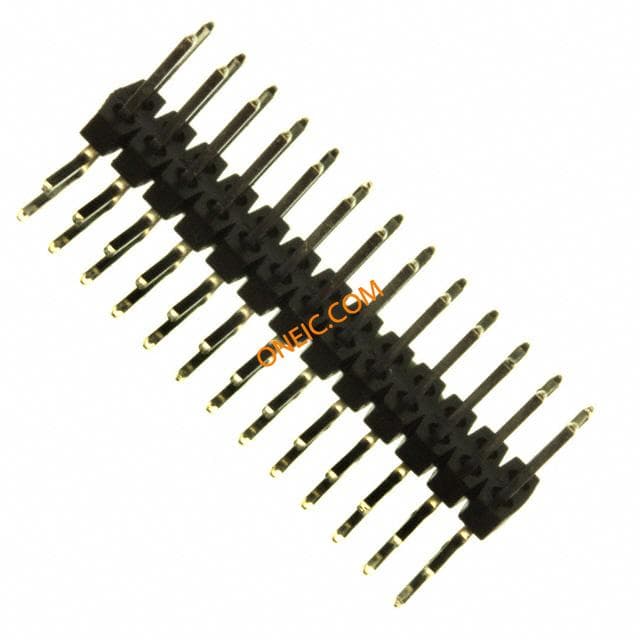

90122-0133
