点击放大查看

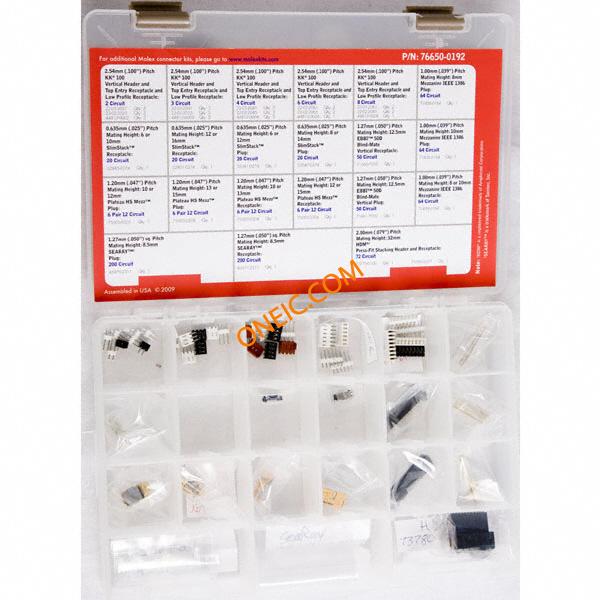

76650-0192
| 制造商 | Molex, LLC |
| 描述 | Deluxe Board Stacking Solution Kit KIT MULTI STACKING APPLICATIONS Board to Board & Mezzanine Connectors BOARD TO BOARD KIT APPLIANCE Kit Description:Includes KK100, HDM, EBBI 50D, SEARAY, Plateau HS Mezz, IEEE1386, Slimstack Product Families. Pitches range: 0.635mm (.025)" - 2.54mm (0.1)"Kit Category:Board to BoardSolution:Board to Board Packaging:Tackle Box: 11" by 7.25"Num. Pieces:55 DELUXE BOARD STACKING APPLICATION KIT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 零件号别名 | 0766500192 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 30, 100, 240 V | 额定电压 | 30 V, 100 V, 240 V |
| 最大额定电流 | 500 mA | ||
机械参数
| 间距 | 0.635 mm, 1 mm, 1.2 mm, 1.27 mm, 2 mm, 2.54 mm | 包装方式 | Plastic Box with Bin Guide |
| 安装类型 | Vertical | 连接器类型 | Receptacle, Headers and Plugs |
| 端接样式 | SMD | 触点数 | 2 to 200 |
产品信息
| 系列 | 76650 | 值 | 55 pcs - Assorted 2 ~ 4, 6, 8, 12, 20, 50, 64, 72 Positions |
| 套件类型 | Board to Board - Arrays, Edge Type, Mezzanine, Rectangular - Headers, Receptacles | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Board-to-Board |
| 电路数 | 2, 3, 4, 6, 8, 12, 20, 50, 64, 72, 200 | ||
文档与媒体
相关型号

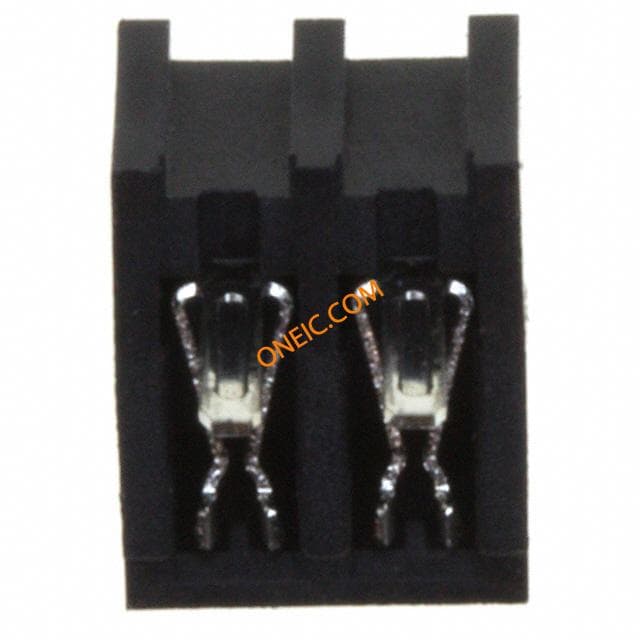

44812-0002
Molex Connector Corporation
CONN RECEPT 2POS .100" TIN PCB Molex 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2.54 Recept. 2 CKT Top/bottom Entry Tin Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray SOCKET, PCB, 0.1", 2WAY Molex KK 254 系列 2路 直 2.54mm节距 通孔 印刷电路板插座, 插座板
44812-0006
Molex Connector Corporation
CONN RECEPT 6POS .100" TIN PCB Molex 2.54mm 6 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2.54 Recept. 6 CKT Top/bottom Entry Tin 2.54mm Pitch KK® PC Board Receptacle, Top and Bottom Entry, Low Profile, 5.00µm Tin (Sn), 6 Circuits SOCKET, PCB, 0.1", 6WAY Molex KK 254 系列 6路 直 2.54mm节距 通孔 印刷电路板插座, 插座板
71661-7050
Molex Connector Corporation
CONN PLUG VERTICAL 50POS .050 Board to Board & Mezzanine Connectors 1.27MM VERT 50P PLG BLIND MATE Conn EBBI PL 50 POS 2.54mm Solder ST Thru-Hole 50Terminal 1Port Tray Conn EBBI PL 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Tray

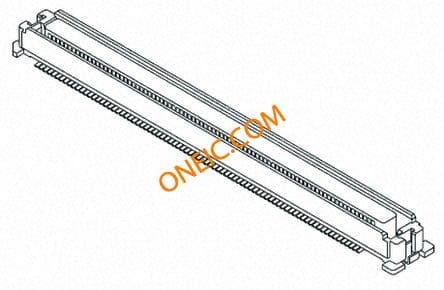

52885-0274
