点击放大查看

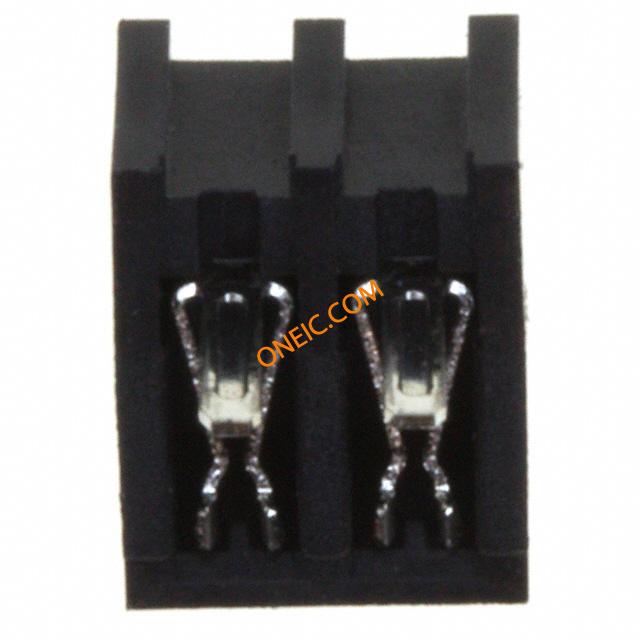

44812-0002

制造商	Molex, LLC
描述	CONN RECEPT 2POS .100" TIN PCB Molex 2.54mm 2 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings 2.54 Recept. 2 CKT Top/bottom Entry Tin Conn Socket Strip RCP 2 POS 2.54mm Solder ST Thru-Hole Tray SOCKET, PCB, 0.1", 2WAY Molex KK 254 系列 2路直 2.54mm节距通孔印刷电路板插座, 插座板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0448120002
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	4160

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

额定电压	250 V	接触电阻	:40mohm
击穿电压	:1000V	最大额定电流	5A
绝缘电阻	:1000Mohm

机械参数

颜色	Black	间距	0.100" (2.54mm)
重量	0.029	材料（通用）	:Glass Filled 4/6 Nylon
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	引脚间距	:2.54mm
安装类型	Through Hole	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Tin	排数	1
触头材料	Brass Alloy	壳体材料	Thermoplastic
端接样式	Through Hole	触点数	2
接触件端接	:Through Hole Right Angle	位数	2
接触镀层厚度	200µin (5.08µm)

产品信息

类型	Socket Strip	连接器性别	:Receptacle
系列	44812	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - PCB	加载位置数	All

环境参数

插拔次数

:25

工作温度

:105°C

文档与媒体

PDF 文档

44812-0002
