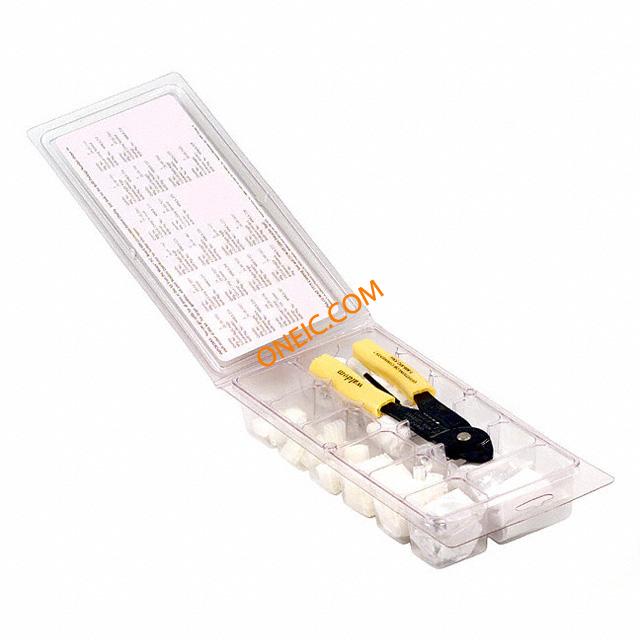

76650-0008
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,5,6POS 4.75-5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V 18-20 WIRE SIZE KIT CONN KK SERIES ASSORTED COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,5,6POS 4.75-5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Universal Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:200 KK Series .156 Center Spacing Kit (Terminal Housings & Headers) 24-18 Awg |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 250 V | 最大额定电流 | 250 V |
机械参数
| 间距 | 0.156" | 包装方式 | Plastic Box with Bin Guide |
| 方向 | Vertical and Right Angle | 连接器类型 | 2, 4, 6, 8 and 10 Receptacles and Headers |
| 线规或范围 - AWG | 20 to 18 | ||
产品信息
| 类型 | Connector Kit | 值 | 200 pcs - Assorted 2 ~ 6, 10 Circuit Housing, Headers, KK Crimp Terminals, Crimp Tool, Extraction Tool |
| 套件类型 | Circuit Terminal Header, Housing | 容器类型 | (1) Crimper, (1) Extraction Tool, (100) Crimp Terminals, (50) Terminal Housings, (48) Breakaway Headers |
| 单元数量 | 200 Pieces | 应用细节 | Vending and Gaming Machines, Production Equipment, Industrial Instruments, Energy and Power |
