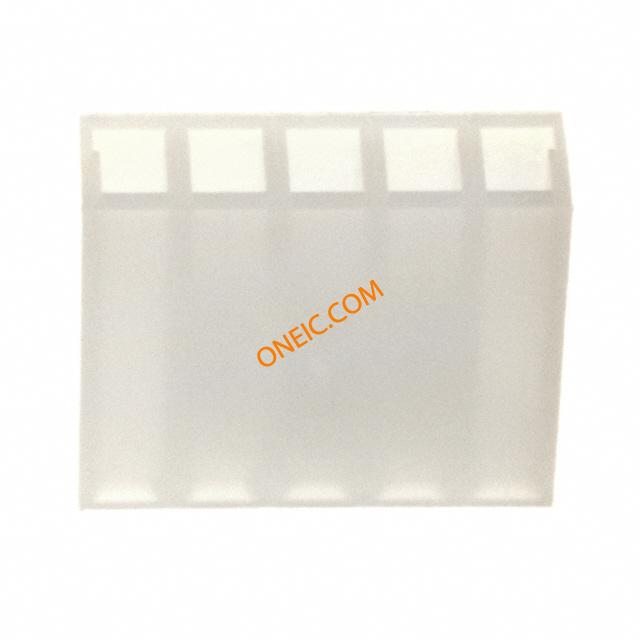

点击放大查看

09-50-7051

制造商	Molex, LLC
描述	CONN HOUSING 5POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,5way Headers & Wire Housings HSG 5P W/O LKG RAMP Conn Housing F 5 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 5WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 5 CIRCUITS Molex KK 396 系列 3.96mm 节距 5 路直母电缆安装压接连接器外壳
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507051 2139-5C 9507051
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1500

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

量程（°/s）

:MOLEX - KK 2139 Series

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	6.4mm
长度	19.71mm	重量	0.02
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	5
接触件端接	Crimp	位数	5

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2139	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-7051

PDF 文档

1774892.pdf
