26-48-1062
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS .156 R/A TIN Headers & Wire Housings R/A B/A HDR 6P TIN SQUARE PIN Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026481062 A-41662-A06A102 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 400 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 间距 | 3.96 mm | 包装方式 | Bag |
| 安装类型 | Right | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 6 | ||
产品信息
| 类型 | Breakaway | 系列 | 41662 |
| 产品子类型 | Headers | ||
文档与媒体
相关型号

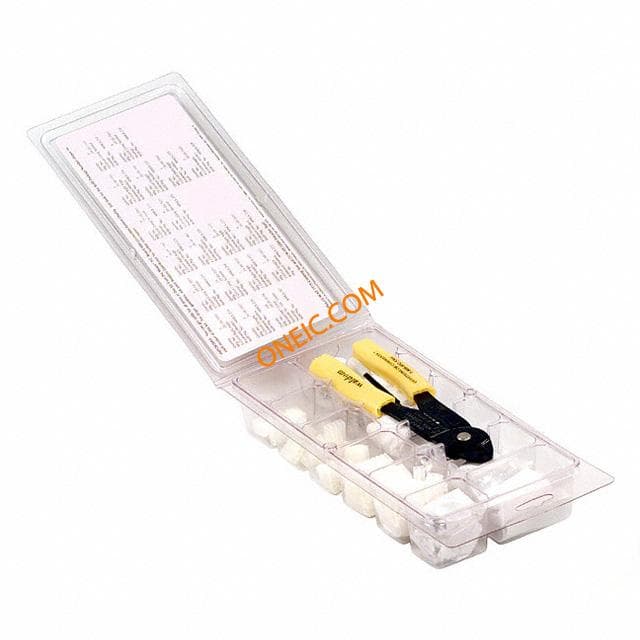

76650-0008
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,5,6POS 4.75-5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V 18-20 WIRE SIZE KIT CONN KK SERIES ASSORTED COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,5,6POS 4.75-5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Universal Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:200 KK Series .156 Center Spacing Kit (Terminal Housings & Headers) 24-18 Awg
76650-0009
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings .100KK CONNECTOR KIT PREM CRIMPTOOL 184PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Premium Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 kk-100 connector kit KK .100 Header & Housing kit with extraction tool and premium crimp tool

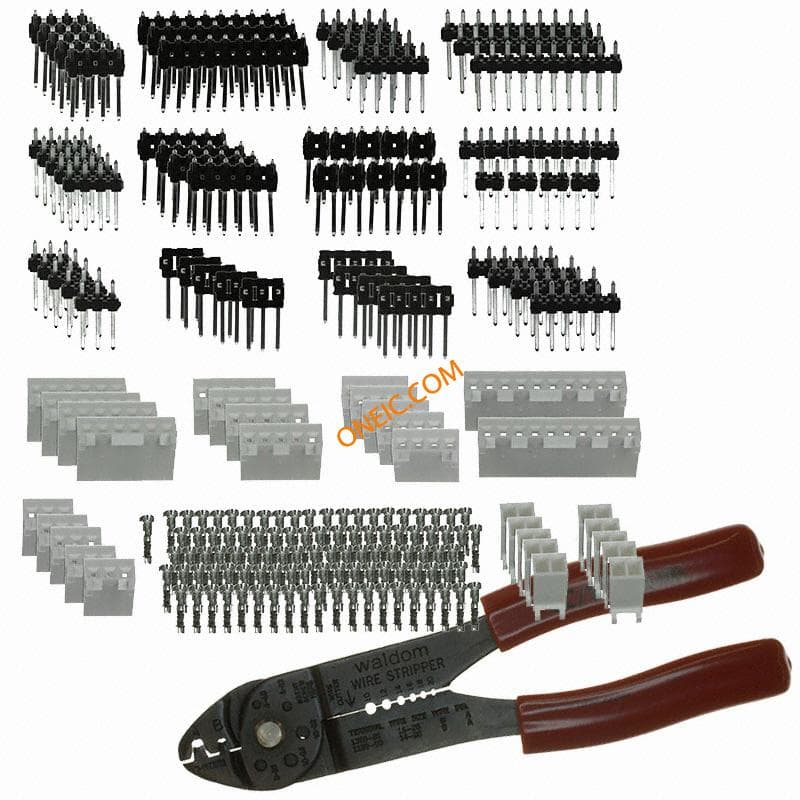

76650-0196
molex
COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,3,4,5,6POS 3-9A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 3.96MM PITCH 250V 18-20 WIRE SIZE KIT CONN MAR KK NEW KK COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,2,3,4,5,6POS 3-9A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL ... Kit Description:KK Breakway Vertical and Right Angle Header and Receptacle with Universal Crimp ToolKit Category:Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:194

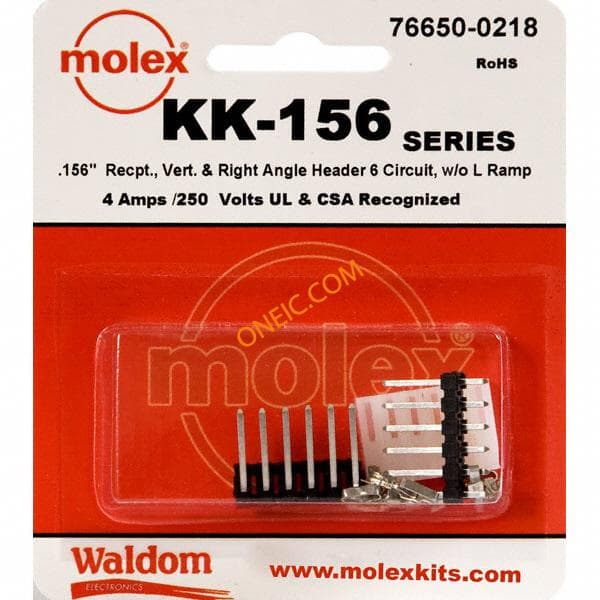

76650-0218
Molex Connector Corporation
KIT WMLX-275 Headers & Wire Housings KK-156 Kit no ramp V & RA Hdr Rec 6Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle without Ramp, 6 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:10 KK-156 CONNECTOR KIT .156 PITCH, 6 CKT
