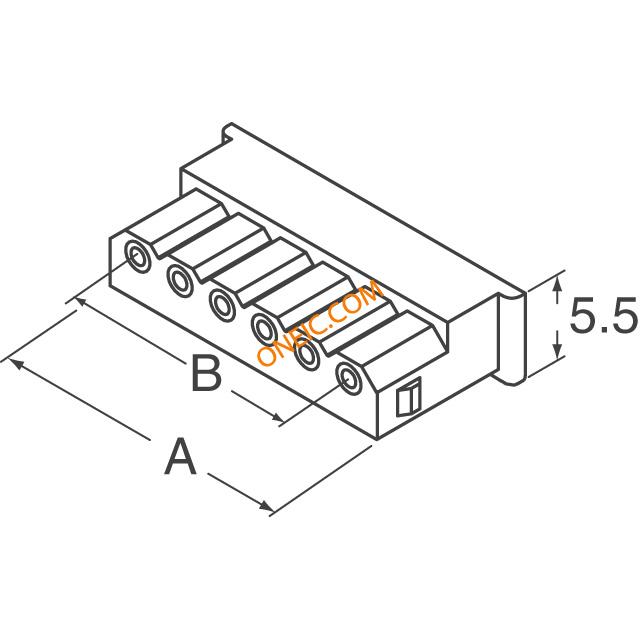

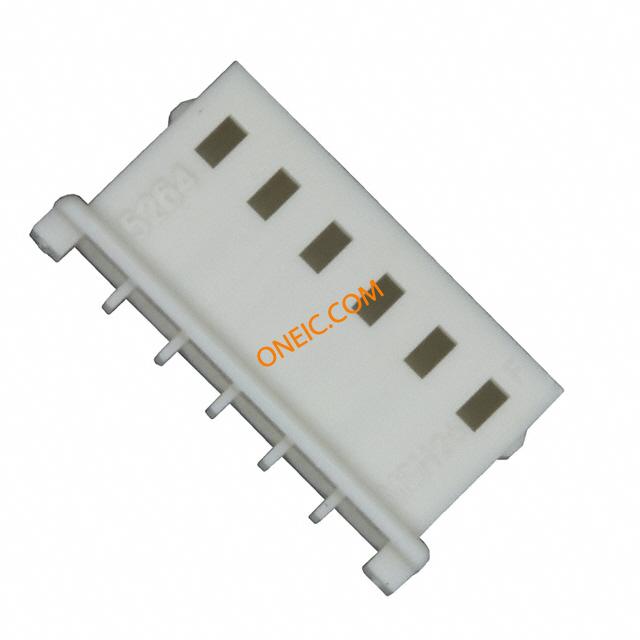

50-37-5063
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 6 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,6w Headers & Wire Housings SPOX CRIMP HSG 6P Conn Housing F 6 POS 2.5mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 2.5MM, 6WAY 2.5MMLOWPROFILEHOUSING526406 Molex SPOX 系列 2.5mm 节距 6 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SPOX | 零件号别名 | 0050375063 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 最大额定电流 | :3A | ||
机械参数
| 深度 | 3.9mm | 间距 | 2.5 mm |
| 宽度 | 8mm | 长度 | 17.4mm |
| 重量 | 0.035 | 材料（通用） | :P A (Polyamide (Nylon) 6/6 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Nylon |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 5264 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | SPOX Wire-to-Board Connector | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
0008701039
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel
0008701040
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag
0039000160
molex
2.5 LOW PROFILE CRIMP RECEPTACLE Contact SKT Crimp ST Cable Mount Reel 2.5 LOW PROFILE CRIMP REC
76650-0167
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT CONN MINI-SPOX 2.5MM Headers & Wire Housings MINISPOX 2.5MM KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.5MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle.Kit Category:Wire to BoardSolution:Off the boardPackaging:Clamshell: 12.75" by 6"Num. Pieces:214

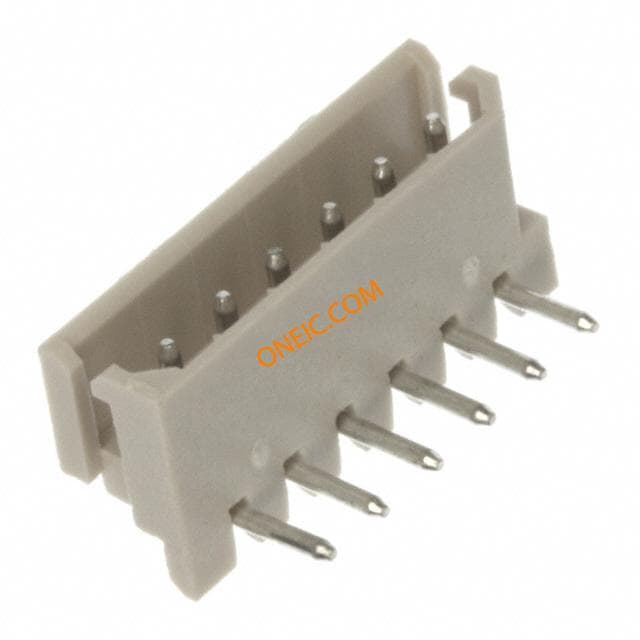

22-05-7065
Molex Connector Corporation
CONN HEADER 6POS 2.5MM R/A TIN Molex 5268 Series 2.5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 6 CKT 2.5MM R/A HDR Conn Shrouded Header HDR 6 POS 2.5mm Solder RA Thru-Hole Bag HEADER, RIGHT ANGLE, 2.5MM, 6WAY Molex SPOX 系列 2.5mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔

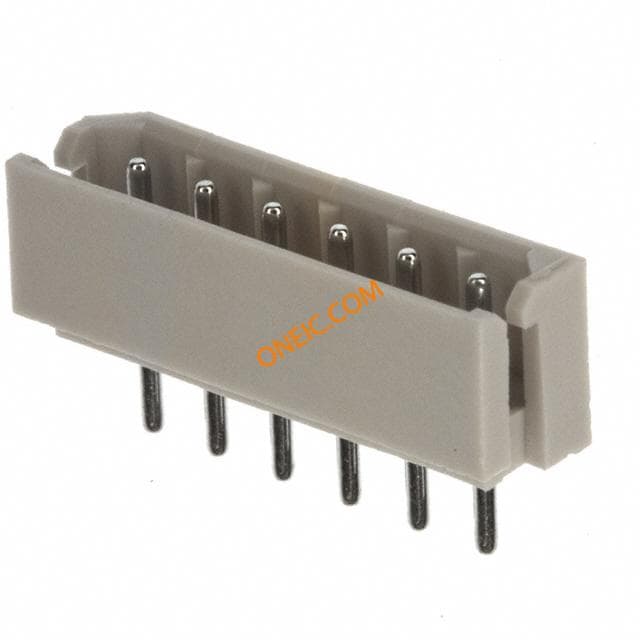

22-03-5065
