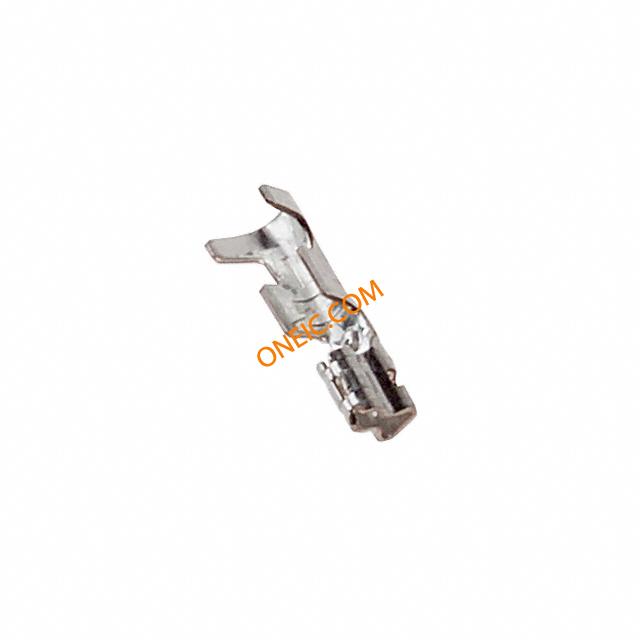

0008701040
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 22-28AWG CRIMP Conn Contact F 1 POS Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 82 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 3 |
机械参数
| 深度 | 6.35 mm | 间距 | Not Required mm |
| 高度 | 6.02 mm | 包装方式 | Bag |
| 导线线规 | 22-28 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 22.68 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 35µin (0.90µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 行业别名 | 08-70-1040, 08701040, 8701040 | 适用产品/相关产品 | 0008701039 |
文档与媒体
相关型号
0050375033
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Bag CONN HOUSING 3POS 2.5MM SHROUD
0050375043
molex
Conn Housing RCP 4 POS 2.5mm Crimp ST Bag CONN HOUSING 4POS 2.5MM SHROUD
0050375023
molex
Conn Housing RCP 2 POS 2.5mm Crimp ST Bag Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM SHROUD

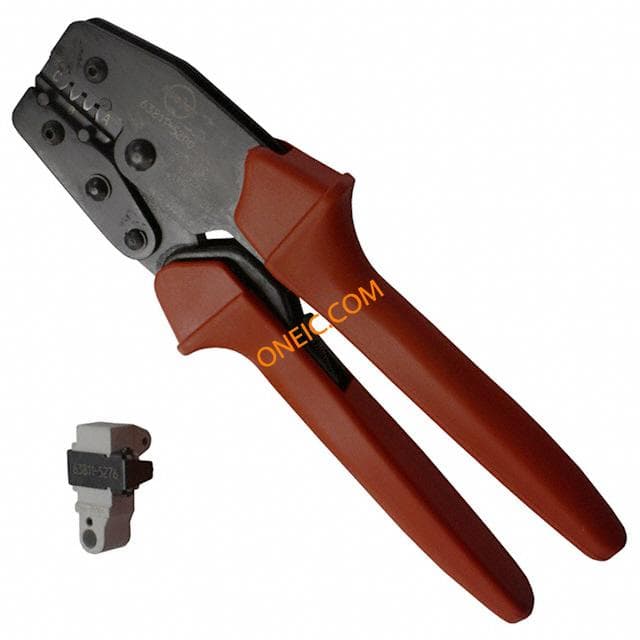

0638115200
molex
Connector Accessories Hand Crimp Tool Hand Crimp Tool For Spox Crimp Terminals TOOL HAND CRIMP 22-28AWG Tool: for crimping; Spox terminals; 28÷22AWG; Series: SPOX
0050375053
molex
Conn Housing RCP 5 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 2.5MM SHROUD
0050375073
molex
Conn Housing RCP 7 POS 2.5mm Crimp ST Bag CONN HOUSING 7POS 2.5MM SHROUD
50-37-5063
molex
Conn Housing RCP 6 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,6w Headers & Wire Housings SPOX CRIMP HSG 6P Conn Housing F 6 POS 2.5mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 2.5MM, 6WAY 2.5MMLOWPROFILEHOUSING526406 Molex SPOX 系列 2.5mm 节距 6 路 直 母 电缆安装 压接连接器外壳

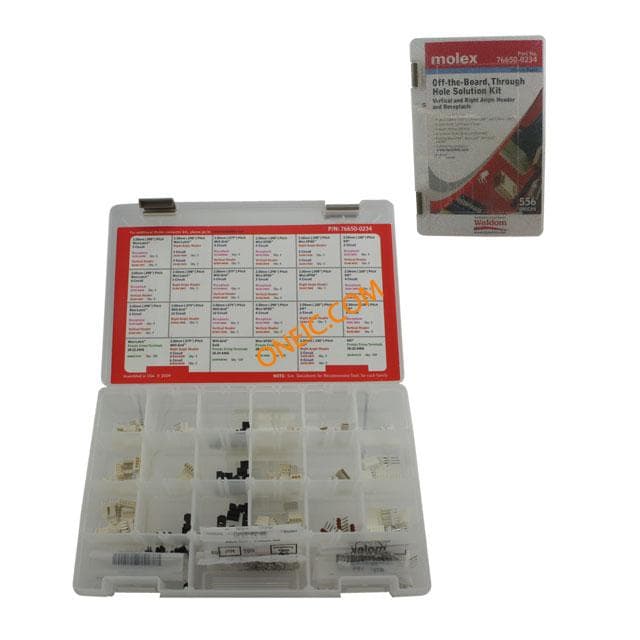

76650-0234
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,6POS 0.5-2A,2A,3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM,2.54MM,2.5MM PITCH 125V,250V 22-28, 22-30, 24-30 WIRE SIZE KIT CONN MULTI WIRE-BOARD 556PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,6POS 0.5-2A,2A,3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM,2.54MM,2.5MM PITCH 125V,250V ...
0456090001
Molex
Conn Housing RCP 16 POS 2.5mm Crimp ST Bag SPOX BMI RECEPT 16 CKT
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0050375133
Molex
Conn Housing RCP 13 POS 2.5mm Crimp ST Bag CONN HOUSING 13POS 2.5MM SHROUD
0456090012
Molex
Conn Housing RCP 12 POS 2.5mm Crimp ST Cable Mount Bag SPOX BMI RECPT HOUSING 12CKTS

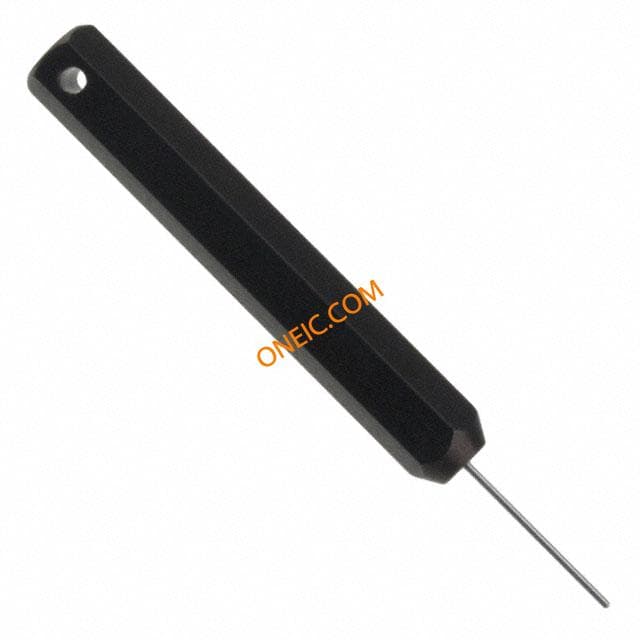

0638131400
