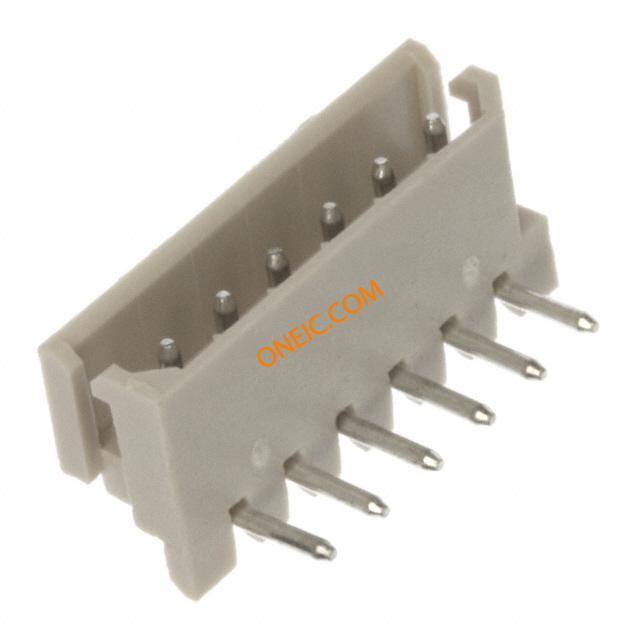

22-05-7065
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS 2.5MM R/A TIN Molex 5268 Series 2.5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 6 CKT 2.5MM R/A HDR Conn Shrouded Header HDR 6 POS 2.5mm Solder RA Thru-Hole Bag HEADER, RIGHT ANGLE, 2.5MM, 6WAY Molex SPOX 系列 2.5mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | SPOX | 零件号别名 | 0022057065 5268-06A |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - SPOX 5268 Series | 额定电压 | 250 V ac/dc |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 击穿电压 | :1000V | 最大额定电流 | 3A |
机械参数

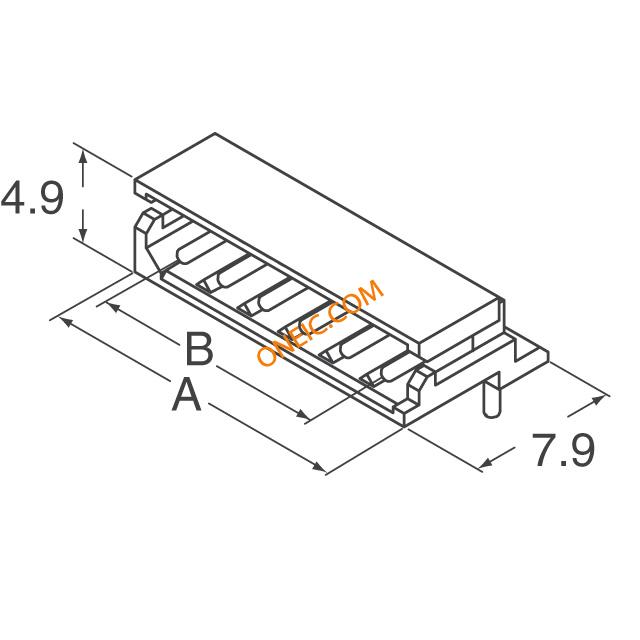

| 颜色 | Natural | 间距 | 0.098" (2.50mm) |
| 重量 | 0.000613 | 材料（通用） | :PA Polyamide (Nylon) 6/6 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.5mm |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 6 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 6 |
| 接触长度 - 配合 | 0.138" (3.50mm) | 接触镀层厚度 | 160µin (4.06µm) |
| 第一连接器安装类型 | :Right Angle | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | :Header |
| 系列 | 5268 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | :105°C | ||
