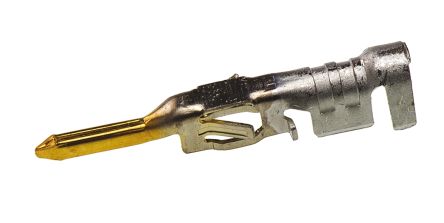

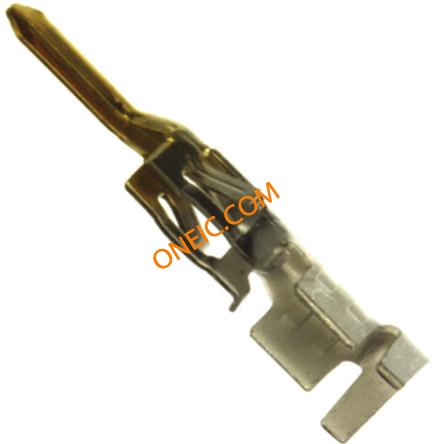

43031-0009
| 制造商 | Molex, LLC |
| 描述 | Crimp terminal,MicroFit,Au,male,20-24awg Headers & Wire Housings MALE 20-24 AWG BULK gold Contact PIN Crimp ST Cable Mount Bag CONTACT Micro-Fit 3.0 Crimp Term., Pin, w/Gold Plated Tin/Brass Alloy Contact, 20-24 AWG, Crimp pin Male 24...20 AWG, 43031-0009, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀金触点 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430310009 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 12000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 接触电阻 | 10mΩ |
| 最大额定电流 | 5 A | ||
机械参数
| 重量 | 0.00001 | 导线线规 | 24-20 |
| 端接方式 | Crimp | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 连接器性别 | Male | 系列 | 43031 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :Micro-Fit 3.0 Connectors |
