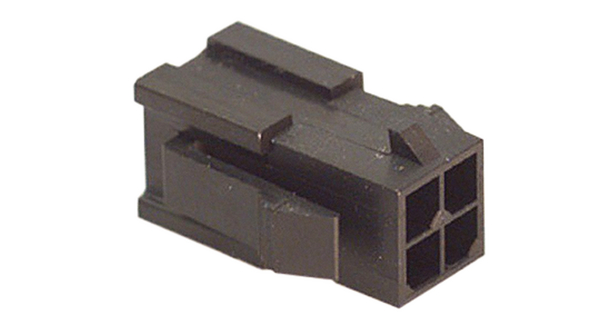

点击放大查看
43020-0400
| 制造商 | Molex, LLC |
| 描述 | 4 way dual row panel mount plug,5A 3mm Headers & Wire Housings PLUG PNL MNT 4P DUAL ROW Conn Housing PL 4 POS 3mm Crimp ST Panel Mount Bag PLUG, PANEL MOUNT, 4WAY PLUG W/EARS; PANEL MOUNT; 4 CIRCUITS Male contact housing dual row Pitch3 mm Poles 2 x 2 Micro-Fit, 43020-0400, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 4 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430200400 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 350 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5A | 连接器类型 - 电压输入 | Plug |
机械参数
| 间距 | 3 mm | 重量 | 0.0088 |
| 材料（通用） | :Polyester | 安装类型 | Straight |
| 安装样式 | Panel | 排数 | 2 |
| 壳体材料 | Polyester | 连接器颜色 | Black |
| 触点数 | 4 | 位数 | :4 |
产品信息
| 类型 | Plug Housing | 连接器性别 | :Plug |
| 系列 | 43020 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | :Micro-Fit 3.0 Crimp Terminals | ||
环境参数
| 工作温度 | +105°C | ||
