点击放大查看

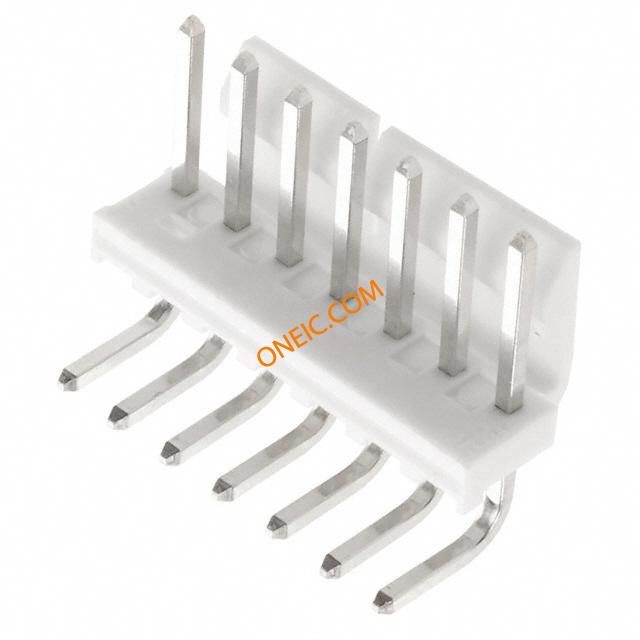

26-60-5070
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 7POS .156 R/A TIN Headers & Wire Housings R/A PCB HDR 7P TIN FRICTION LOCK |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026605070 41792-0007 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 7 |
| 位数 | 7 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 41792 | 产品子类型 | Headers |
| 加载位置数 | All | ||
相关型号
0009482070
Molex, LLC
. 0009482070 - 7 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin from Molex. from now!
0009503071
molex
Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 7POS .156 W/RAMP
0009482071
molex
Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 7POS TIN PCB
0009523078
molex
Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 7POS TIN PCB

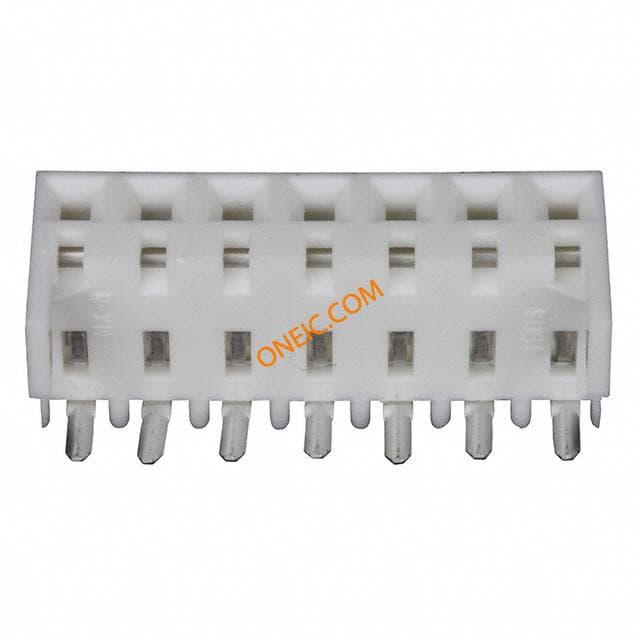

0009483075
Molex
Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 7POS .156 R/A PCB
0009521076
Molex
Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 7POS TIN PCB
0009930700
Molex
Conn Housing F 7 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 7POS
0009485074
Molex
Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 7POS GOLD PCB
0009485076
Molex, LLC
. 0009485076 - 7 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Gold from Molex. from now!
0009482072
Molex, LLC
. 0009482072 - 7 Position Receptacle, Bottom Entry Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009485075
Molex
Conn Socket Strip RCP 7 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 7POS GOLD PCB
0009482078
Molex
Conn Socket Strip RCP 7 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 7POS TIN PCB

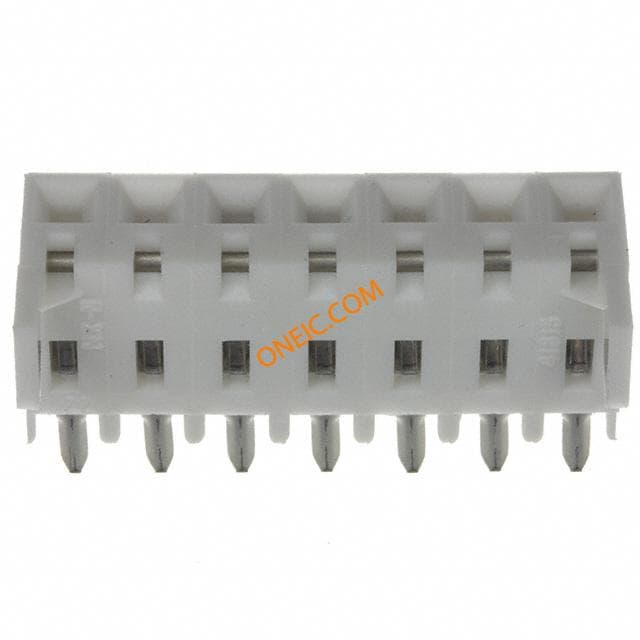

09-48-3076
Molex Connector Corporation
CONN RECEPT 7POS .156 VERT PCB Headers & Wire Housings 7 POS RECEPT .156 TOP PCB GOLD Conn Socket Strip RCP 7 POS 3.96mm Solder ST Thru-Hole Tray

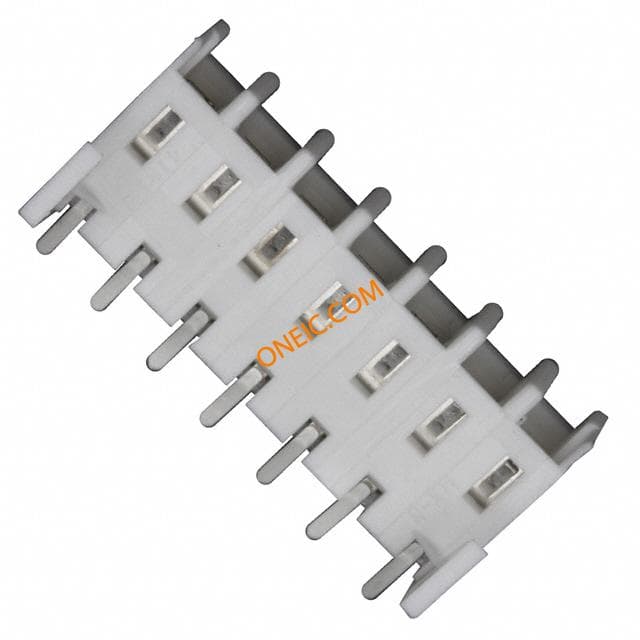

09-48-3074
Molex Connector Corporation
CONN RECEPT 7POS .156 VERT PCB Headers & Wire Housings 7 POS RECEPT .156 BOTTOM PCB GOLD 3.96mm Pitch KK® PC Board Connector, Bottom Entry, Polyester Connector, Gold (Au) Selective, 7 Circuits

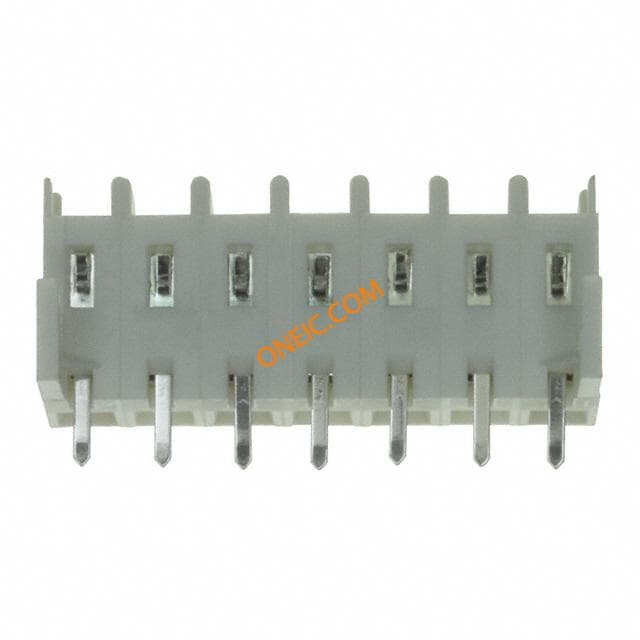

09-48-4079
Molex Connector Corporation
CONN RECEPT 7POS .156 VERT PCB Headers & Wire Housings 7 POS RECEPT .156 BOTTOM PCB TIN 3.96mm Pitch KK® PC Board Connector, Bottom Entry, Polyester Connector, 5.00µm Tin (Sn), 7 Circuits
09-52-3071
Molex Connector Corporation
CONN RECEPT 7POS .156 R/A PCB Headers & Wire Housings .156 KK PCB R/A 7CKT Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray

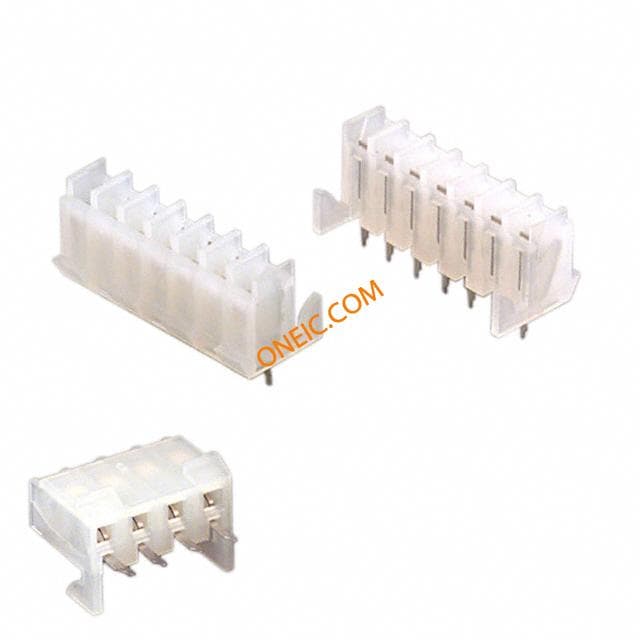

09-62-3072
Molex Connector Corporation
CONN RECEPT 7POS .156 VERT PCB Conn Socket Strip RCP 7 POS 3.96mm Solder ST Thru-Hole Tray
09-52-3072
Molex Connector Corporation
CONN RECEPT 7POS .156 VERT PCB Conn Socket Strip RCP 7 POS 3.96mm Solder ST Thru-Hole Tray
09-50-8073
Molex Connector Corporation
CONN HOUSING 7POS .156 W/POLAR Housing 3.96mm KK, friction ramp, 7way Headers & Wire Housings HSG 7P W/RAMP/RIBS Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Bag CONNECTOR, MULTIPOLE, FEMALE, 7WAY Molex KK 396 系列 1 行 3.96mm 节距 7 路 直 母 电缆安装 压接连接器外壳

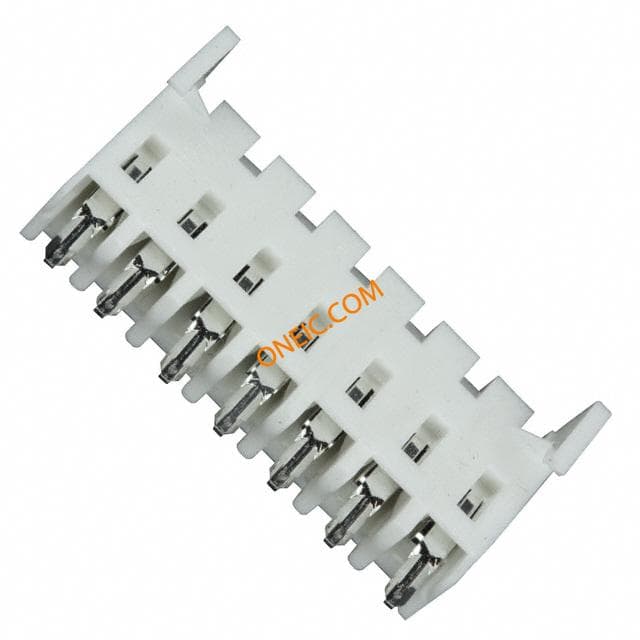

09-48-4078
