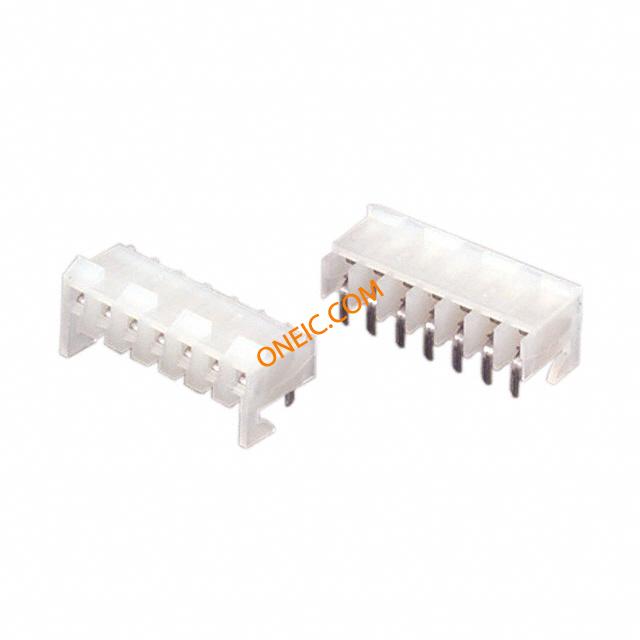

09-52-3071
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 7POS .156 R/A PCB Headers & Wire Housings .156 KK PCB R/A 7CKT Conn Socket Strip RCP 7 POS 3.96mm Solder RA Thru-Hole Tray |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 9523071 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 847 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 4.5 A |
机械参数
| 颜色 | White | 间距 | 0.156" (3.96mm) |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 7 | 位数 | 7 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 系列 | 2145 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
