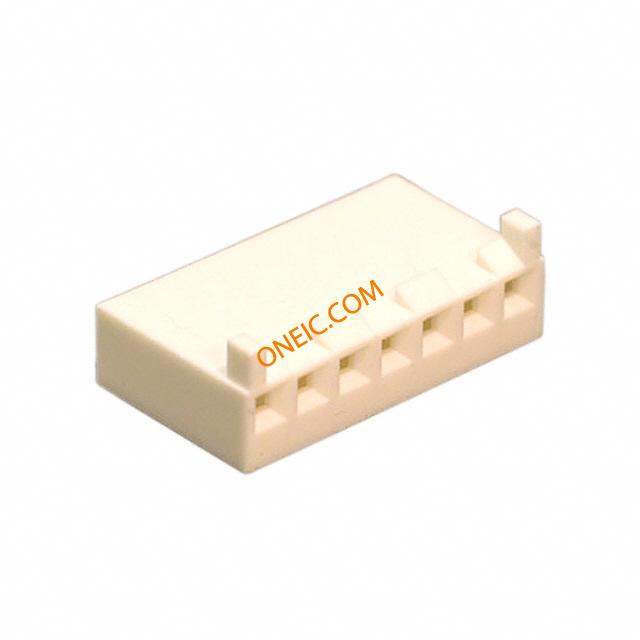

09-50-8073

制造商	Molex, LLC
描述	CONN HOUSING 7POS .156 W/POLAR Housing 3.96mm KK, friction ramp, 7way Headers & Wire Housings HSG 7P W/RAMP/RIBS Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount Bag CONNECTOR, MULTIPOLE, FEMALE, 7WAY Molex KK 396 系列 1 行 3.96mm 节距 7 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508073 41695-N-D07 9508073
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85411000

电气参数

量程（°/s）

:MOLEX - KK 41695 Series

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	8.07mm
长度	28.6mm	重量	0.001
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
安装样式	Wire	排数	1
触头材料	:-	壳体材料	PET
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	7	接触件端接	Crimp
位数	7

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	41695	产品特性	Polarizing Key
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	KK Connector
