点击放大查看

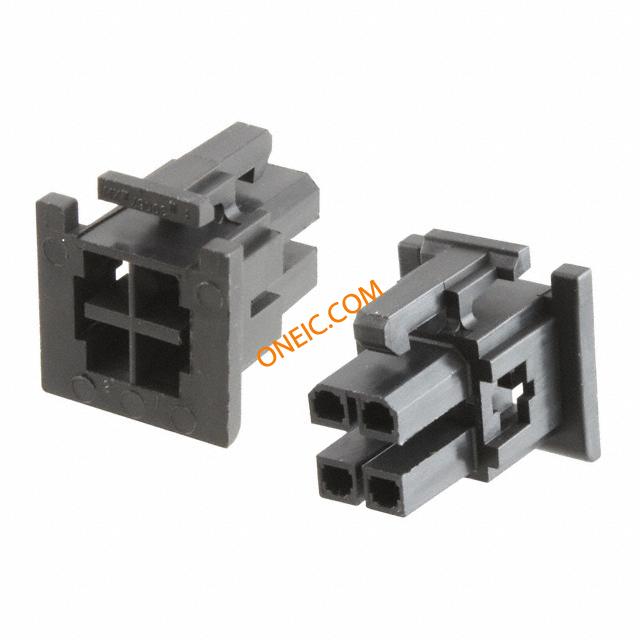

15-97-5041
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RCPT 4POS DUAL MINI-FIT Headers & Wire Housings MINIFIT TPA RECP 4P RECEPT, MINI-FIT TPA, 4.2MM, 4WAY RECEPTACLE, 4WAY MINIFIT TPA RECEPTACLE V-0 Molex Mini-Fit TPA 系列 2 行 4.2mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit TPA | 零件号别名 | 0015975041 30067-04A2 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85472000 | ||
电气参数
| 量程（°/s） | :MOLEX - Mini-Fit TPA 30067 Series | ||
机械参数
| 颜色 | Black | 间距 | 0.165" (4.20mm) |
| 重量 | 0.002 | 包装方式 | Bulk |
| 排间距 | 0.217" (5.51mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Latch Lock |
| 排数 | 2 | 触头材料 | :Brass |
| 壳体材料 | Polyester | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Socket |
| 系列 | 30067 | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | :TPA and CPA Pieces | ||
相关型号
0039000038
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000186
molex
Contact F Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Loose Piece
0039000207
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000183
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-28AWG 30GOLD
0039000213
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0039000180
molex
Contact SKT Crimp ST Cable Mount Loose Piece MINI FIT JR. TERM. BL/PT/FORM
39-00-0055
Molex
Headers & Wire Housings SOCKET 18-24AWG REEL CONN TERM FEMALE 18-24AWG GOLD
39-00-0168
Molex
Headers & Wire Housings SOCKET 16 AWG BULK CONN TERM FEMALE 16AWG GOLD Contact SKT Crimp ST Cable Mount Bag
0039000182
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0039000217
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 16AWG TIN
0039000155
Molex
Contact SKT Crimp ST Cable Mount
39-00-0154
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG 30GOLD CONTACT, CRIMP, SOCKET, 24-18AWG

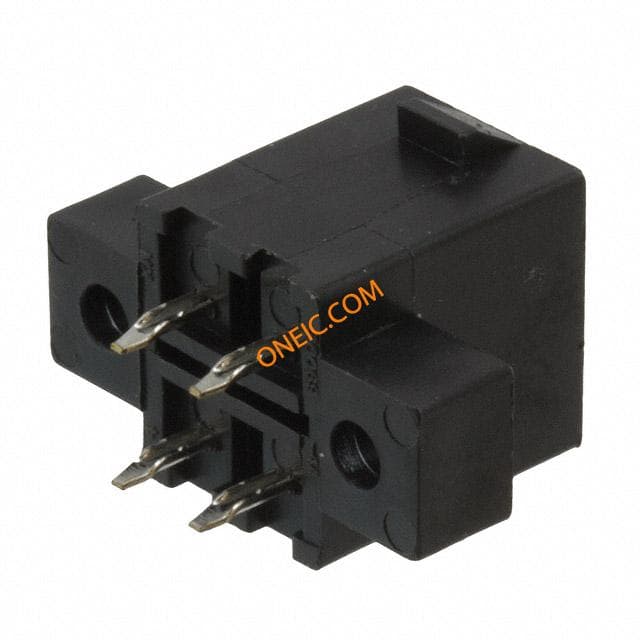

0015977042
Molex
Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Bag CONN HEADER 4POS 4.2MM STR TIN
15-97-6041
Molex Connector Corporation
CONN PLUG 4POS DUAL MINI-FIT Headers & Wire Housings 4CKT PLUG HSG DR Conn Housing M 4 POS 4.2mm Crimp ST Bag PLUG, MINI-FIT TPA, 4.2MM, 4WAY MINIFIT TPA PLUG V-0 BLK 4C
0460182541
Molex Inc
CONN TERM SOCKET 22-24AWG GOLD 0460182541
0460181541
Molex Inc
CONN TERM SOCKET 18-20AWG GOLD 0460181541
0460183541
Molex Inc
CONN TERM SOCKET 16AWG GOLD 0460183541
39-00-0158
Molex Connector Corporation
CONN TERM FEMALE 16AWG 30GOLD Contact SKT Crimp ST Cable Mount Loose Piece
39-00-0156
Molex Inc
CONN TERM FEMALE 22-28AWG 30GOLD Contact SKT Crimp ST Cable Mount Loose Piece MiniFit Term Crp Fem Lse Bz 30Au 22-28

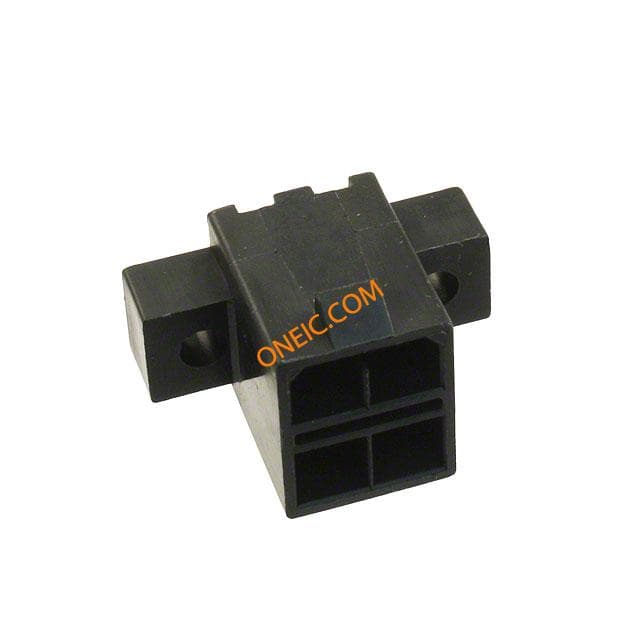

15-97-7044
Molex Connector Corporation
CONN HEADER 4POS 4.2MM STR GOLD Headers & Wire Housings MINIFIT TPA HDR 4P Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Bag CONNECTOR, HEADER, 4POS, 2ROW, 4.2MM
