点击放大查看

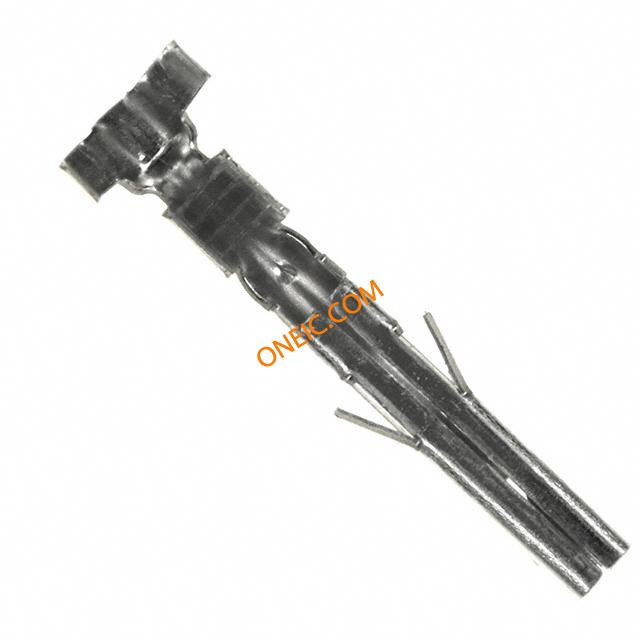

0039000038

制造商	Molex, LLC
描述	Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	其他名称	WM2501CT
子类别	Connector Contact	标准包装数量	Tape & Reel

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10 mohm	最大额定电流	9 A
最小供电电压	600V	连接器类型 - 电压输入	Crimp

机械参数

深度	3.6 mm	间距	Not Required mm
高度	4.5 mm	包装方式	Reel
导线线规	18-24 AWG	屏蔽类型	No
端接方式	Crimp	触头类型	Signal
外壳颜色	Not Required	安装类型	Cable Mount
插针或插孔	Socket	连接器类型	Connector Headers and PCB Recepta...
接触镀层	Tin Over Copper	安装样式	Cable
触头材料	Brass	壳体材料	Not Required
总长度	14.7 mm	触点数	Not Required
接触件端接	Crimp

产品信息

类型	Power	连接器性别	SKT
系列	Mini-Fit® Jr™ 5556	行业别名	39-00-0038, 39000038
适用产品/相关产品	0039000039

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

039000060_sd.pdf

PDF 文档

0039000038_CRIMP_TERMINALS.pdf
