点击放大查看

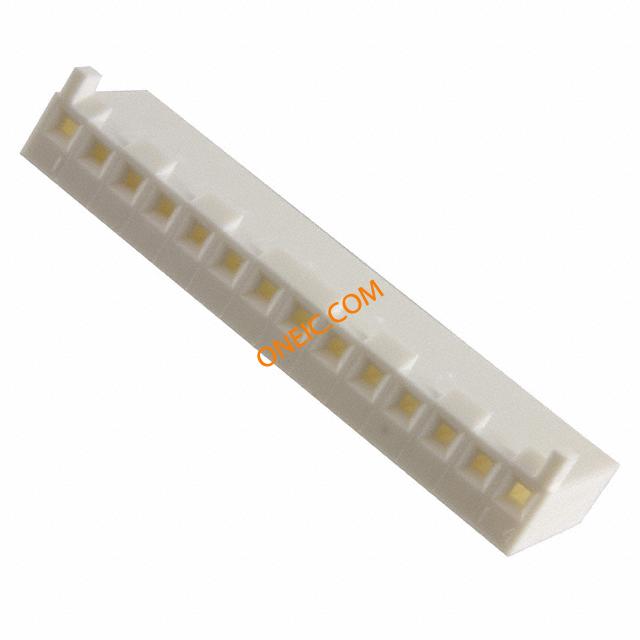

09-50-8143
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 14 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUS 14POS .156 W/RAMP/RIBS Housing 3.96mm KK, friction ramp, 14way Headers & Wire Housings 14 POSITION HOUSING 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 14 Circuits Molex KK 396 系列 1 行 3.96mm 节距 14 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009508143 41695-N-D14 9508143 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 深度 | 15.88mm |
| 间距 | 3.96 mm | 宽度 | 8.07mm |
| 长度 | 56.34mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Non Gendered |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 41695 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 41695 |
| 适用产品/相关产品 | KK Connector | ||
文档与媒体
相关型号
0008500105
Molex, LLC
. 0008500105 - Non-Gendered Contact Tin 18-24 AWG Crimp from Molex. from now!
0008500106
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0008520071
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel

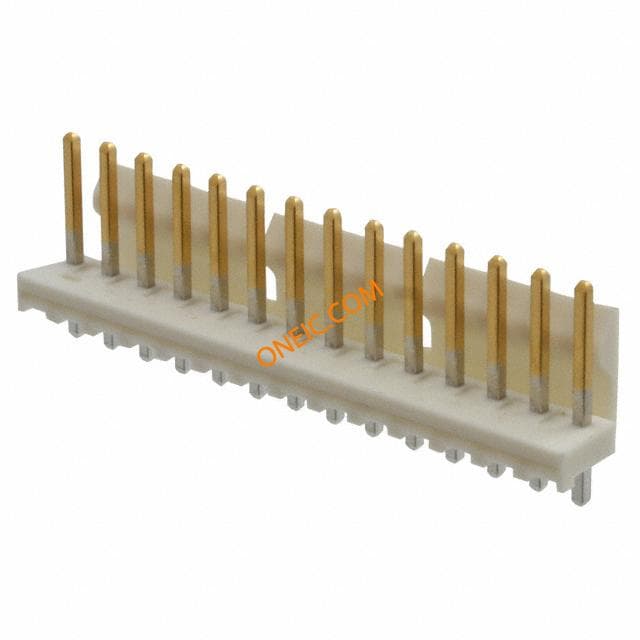

0026614140
molex
Conn Wire to Board M 14 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 14POS VERT GOLD
0008500187
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN
0008520112
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN
0008580104
molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD
0008520811
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN
0008520072
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece
0008650121
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG GOLD
0008600004
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN
0008650122
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-26AWG GOLD
08-50-0133
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG TIN TERM FEMALE CRIMP 22-26AWG TIN Crimp,3.96mm,22-26 AWG,phos bronze,reel Headers & Wire Housings KK TERM 22-26G Reel of 7000 Crimp Contact Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点
0008500112
Molex
Contact SKT Crimp ST Cable Mount CONN TERM CRIMP 22-26AWG TIN
0008580118
Molex
Contact SKT Crimp ST Cable Mount CONN TERM CRIMP 18-20 AWG GOLD
0008500281
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24AWG TIN

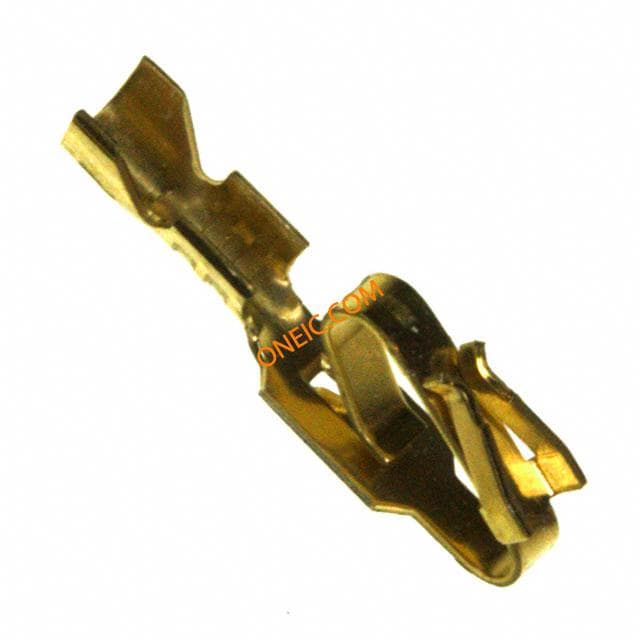

08-56-0124
