0026614140
| 制造商 | Molex, LLC |

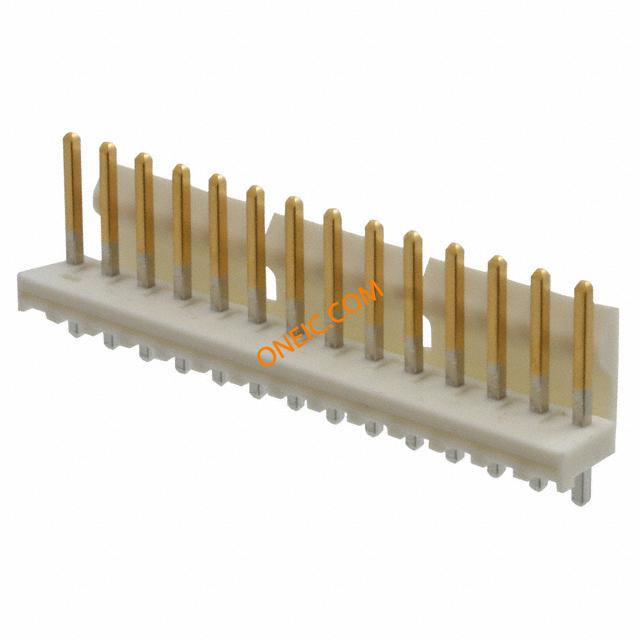

| 描述 | Conn Wire to Board M 14 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 14POS VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触点数 | 14 | 位数 | 14 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | M |
| 加载位置数 | All | ||
