点击放大查看

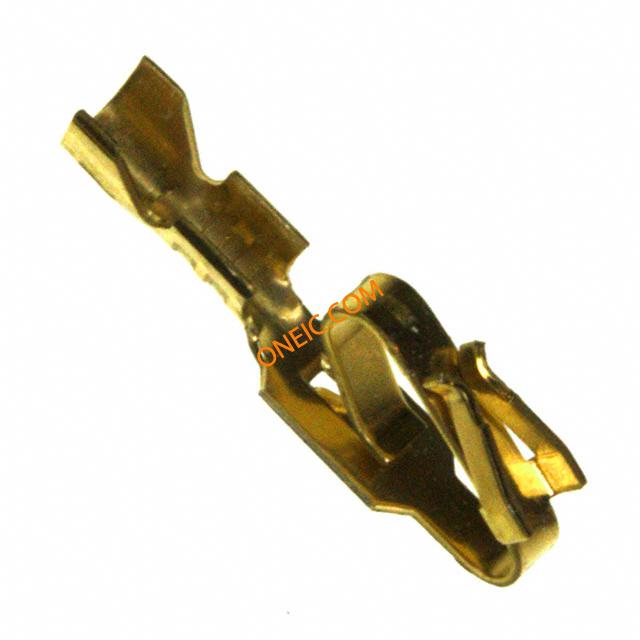

08-56-0124
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 22-26AWG GOLD Headers & Wire Housings TERMINAL 22-26 BULK Contact SKT Crimp ST Cable Mount Loose Piece CONTACT, FEMALE, 26-22AWG, CRIMP KK 156 TERM CRP 22-26 AWG TRIFURCON GOLD Molex KK 396 系列 母 压接接线端子, 压接, 镀金触点 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0008560124 7258-A(P558)L 8560124 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5.5 A |
机械参数
| 重量 | 0.0022 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 插针或插孔 | Non-Gendered |
| 接触镀层 | Gold | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 20µin (0.51µm) |
| 线规或范围 - AWG | :26AWG | ||
产品信息
| 系列 | 7258 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Trifurcon Connectors | ||
