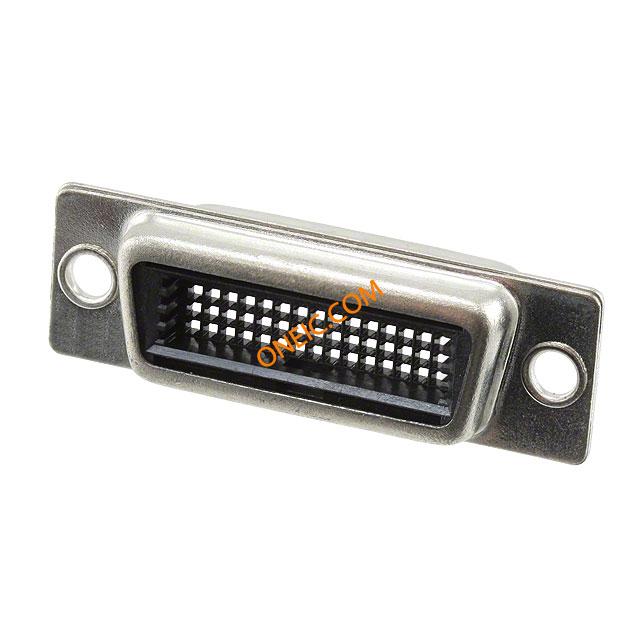

点击放大查看
0709292000
| 制造商 | |
| 描述 | Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray CONN PLUG 60POS LFH SUBASSEMBLY |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact | 最小输入电压 | 40V |
机械参数
| 颜色 | Black | 深度 | 10.97 |
| 间距 | 1.27 mm | 高度 | 8.35 |
| 包装方式 | Tray | 导线线规 | 28-36 AWG |
| 触头类型 | Signal | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 4 |
| 连接器样式 | D-Type, Micro-D | 壳体材料 | Steel |
| 总长度 | 39.14 | 触点数 | 60 |
| 介电材料 | Liquid Crystal Polymer (LCP), Glass Filled | 位数 | 60 |
| 外壳镀层厚度 | 150µin (3.81µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.050 Row to Row | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Grounding Indents, Shielded |
| 行业别名 | 70929-2000, 709292000 | ||
环境参数
| 工作温度 | -20°C ~ 80°C | ||
文档与媒体
相关型号
0709282001
molex
Conn PCB Connector SKT 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube CONN RCPT 60POS .050 R/A SHIELD
0714770003
molex
Conn Rectangular PL 20 POS 1.27mm Solder ST Thru-Hole Tray 20CKT .050 LFH PLG STK
0709282009
molex
Conn D-Subminiature RCP 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube ASSY FEM LFH R/A 60CKT GOLD
0714770002
molex
Conn Rectangular PL 20 POS 1.27mm Solder ST Thru-Hole Tray LFH PLUG INSERT MOLD 20CKT
0709282007
molex
Conn Low Force Helix RCP 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube 1.27MM LFH MTX 50 RCPT RA FEM
0709841008
molex
Conn Low Force Helix PL 15 POS 1.27mm Solder ST Thru-Hole 15 Terminal 1 Port Tray 1.27MM LFH MTX 50 PLUG CBL KIT

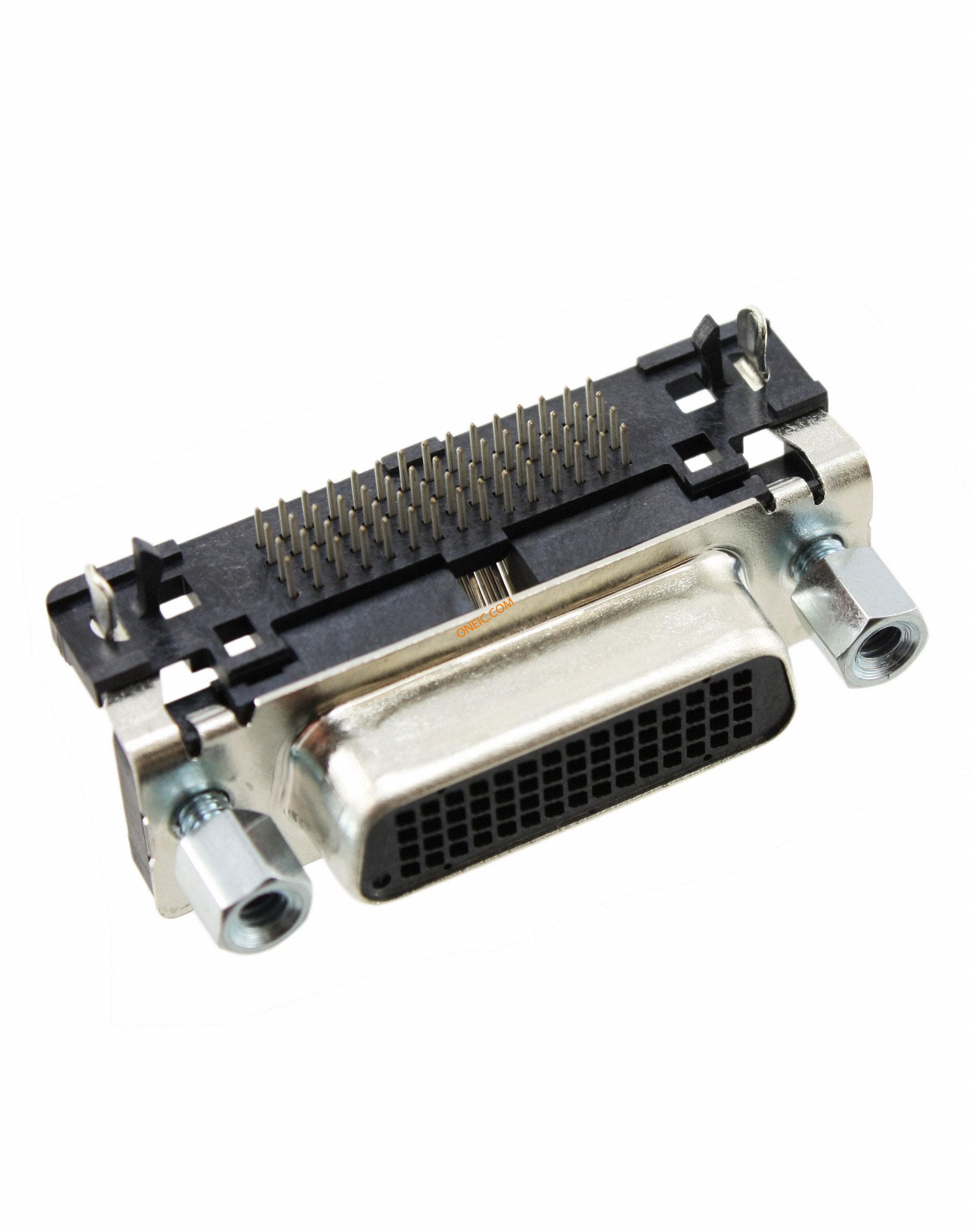

0709282003
