0709841008
| 制造商 | |
| 描述 | Conn Low Force Helix PL 15 POS 1.27mm Solder ST Thru-Hole 15 Terminal 1 Port Tray 1.27MM LFH MTX 50 PLUG CBL KIT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 间距 | 1.27 | 包装方式 | Tray |
| 导线线规 | 28-36 AWG | 端接方式 | Solder |
| 触点形式 | Stamped | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 接触镀层 | Gold |
| 触头材料 | Phosphor Bronze | 第一触头极性 | PL |
| 触点数 | 15 | 端接表面处理 | Tin |
| 接触件端接 | Solder | 接触镀层厚度 | 30µin (0.76µm) |
| 端接镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Low Force Helix | 产品特性 | Matrix Terminal Strip |
| 端口数 | 1 | ||
文档与媒体
相关型号
暂无图片
0709292009
molex
Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray 1.27MM LFH MTX 50 PLG SUBASSY
¥10.9616
详情
0709292000
molex
Conn Housing PL 60 POS 1.27mm Crimp ST Panel Mount Tray CONN PLUG 60POS LFH SUBASSEMBLY
¥18.2308
详情
暂无图片
0751351009
molex
Conn Housing PL 59 POS 1.27mm Crimp ST DMS59 PLG .050 PITCH CABLE ASSY
¥10.9446
详情

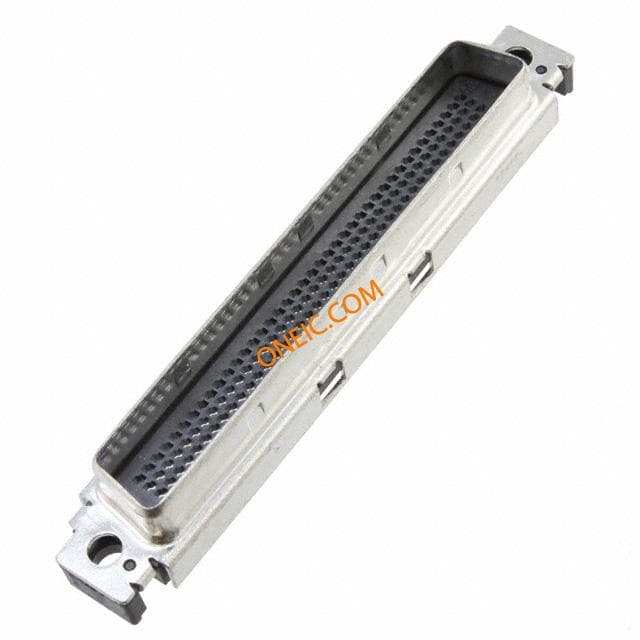

0716243000
