点击放大查看

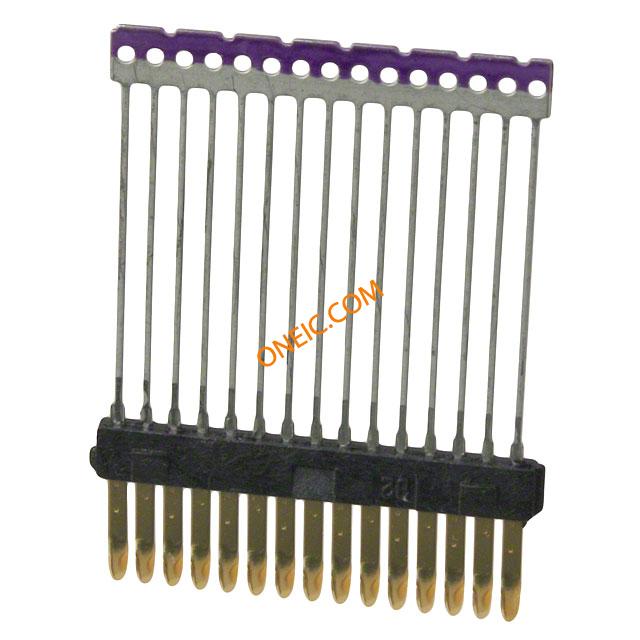

0051242021
| 制造商 | |
| 描述 | Conn LFH Terminal Strip PIN 15 POS 1.27mm Solder ST Thru-Hole 15 Terminal 1 Port Tray CONN TERM STICK 15POS W/CARRIER |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 20 Days | 子类别 | Connector D-Subminiature |
| 标准包装数量 | 759 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact | 最小输入电压 | 40VAC |
机械参数
| 深度 | 23.62 | 间距 | 1.27 |
| 高度 | 1.91 | 包装方式 | Tray |
| 端接方式 | Solder | 触点形式 | Stamped |
| 触头类型 | Male Pin | 安装类型 | Straight |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 20.32 | 第一触头极性 | PIN |
| 触点数 | 15 | 端接表面处理 | Tin |
| 接触件端接 | Solder, PCB | 接触镀层厚度 | 30µin (0.76µm) |
| 端接镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | LFH Terminal Strip | 产品特性 | Matrix Terminal Strip |
| 端口数 | 1 | 行业别名 | 51-24-2021, 51242021 |
