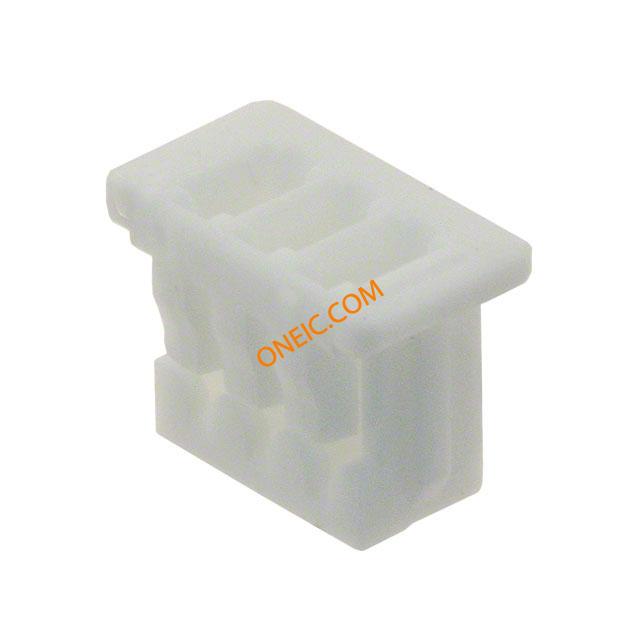

0510210300
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 3POS 1.25MM NATURAL Conn Housing F 3 POS 1.25mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:3; w/o terminals; 1.25mm; for cable |
| 分类 |
商业参数
| 交货时间 | 69 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压值 | 125V | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 125V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 3.95 mm |
| 间距 | 0.049" (1.25mm) | 高度 | 3.2 mm |
| 重量 | 0.05 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 1.25mm |
| 外壳颜色 | Natural | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Housing, Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polybutylene Terepht |
| 总长度 | 5.5 mm | 包装数量 | 2000 |
| 连接器 - 电缆 | plug | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 3 |
| 外壳与棱镜材料 | polyamide | 第一连接器安装特征 | 1x3 |
产品信息
| SPG | 2000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | PicoBlade | 单元数量 | 1 |
| 行业别名 | 51021-0300, 510210300 | ||
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
相关型号
0530470310
molex
Conn Wire to Board HDR 3 POS 1.25mm Solder ST Thru-Hole Tray CONN HEADER 3POS 1.25MM VERT TIN Socket; wire-board; male; PIN:3; 1.25mm; THT; PicoBlade; 1A; tinned

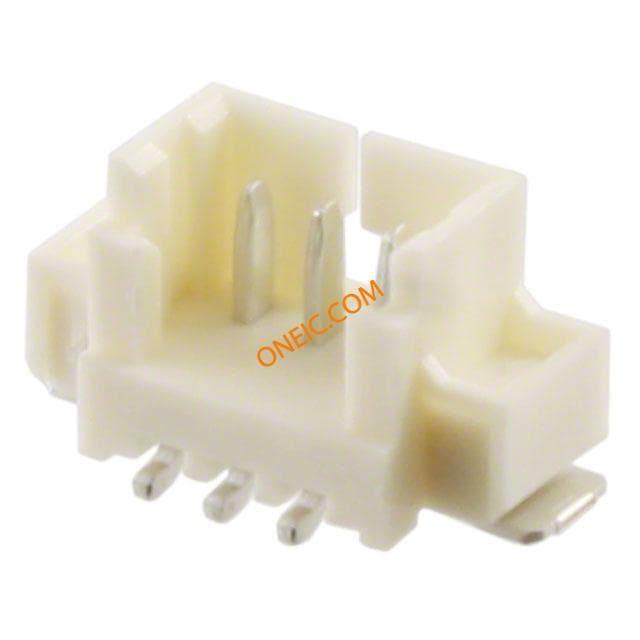

0533980371
molex
Conn Wire to Board HDR 3 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 3POS 1.25MM VERT SMD Socket; wire-board; male; PIN:3; 1.25mm; SMT; PicoBlade; 1A; tinned
0500588100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk

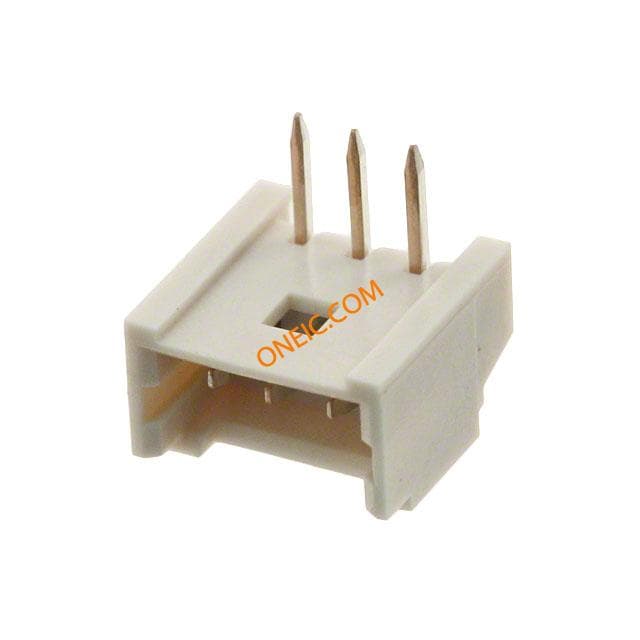

0530480310
molex
Conn Shrouded Header HDR 3 POS 1.25mm Solder RA Thru-Hole Tray CONN HEADER 3POS 1.25MM R/A TIN Socket; wire-board; male; PIN:3; 1.25mm; THT; PicoBlade; 1A; tinned
0500798100
Molex, LLC
. 0500798100 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now!
0500588000
Molex, LLC
. 0500588000 - Socket Contact Tin 28-32 AWG Crimp from Molex. from now!
0532610371
molex
Conn Shrouded Header HDR 3 POS 1.25mm Solder RA SMD Embossed T/R CONN HEADER 3POS 1.25MM R/A SMD Socket; wire-board; male; PIN:3; 1.25mm; SMT; PicoBlade; 1A; tinned

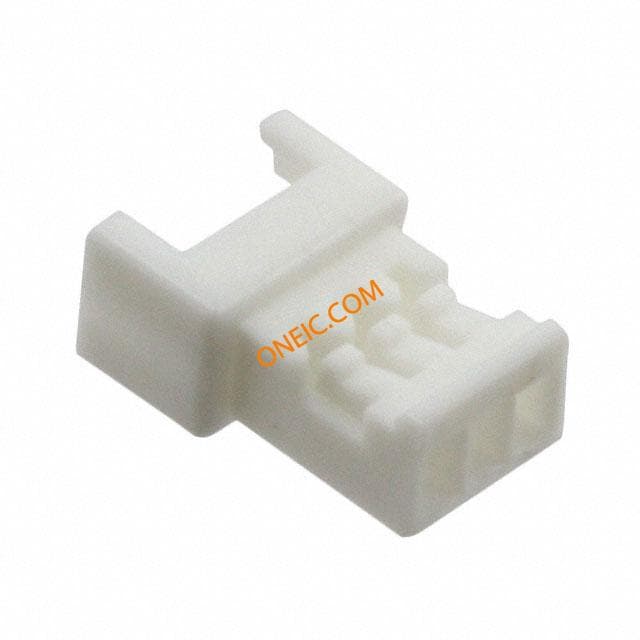

51047-0300
molex
Conn Housing PL 3 POS 1.25mm Crimp ST Bag CONN PLUG 3POS 1.25MM 3w WTW plug housing,1.25mm Headers & Wire Housings 3 CKT PLUG HOUSE Conn Housing M 3 POS 1.25mm Crimp ST Cable Mount Bag CONNECTOR, HOUSING, PLUG 1.25MM 3WAY Crimp housing 1.25 mm Poles 3 PicoBlade, 51047-0300, Molex Molex PICOBLADE 系列 1.25mm 节距 3 路 直 公 压接连接器外壳

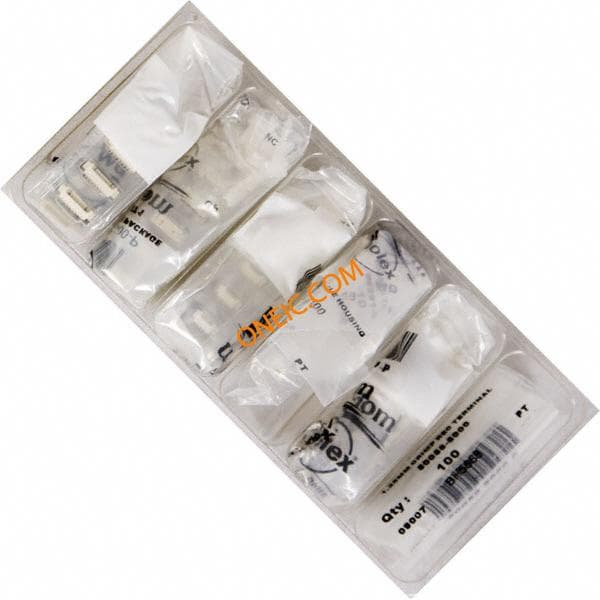

76650-0127
