点击放大查看

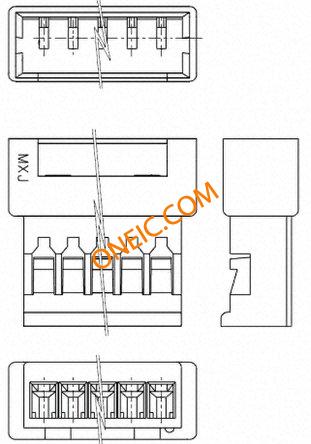

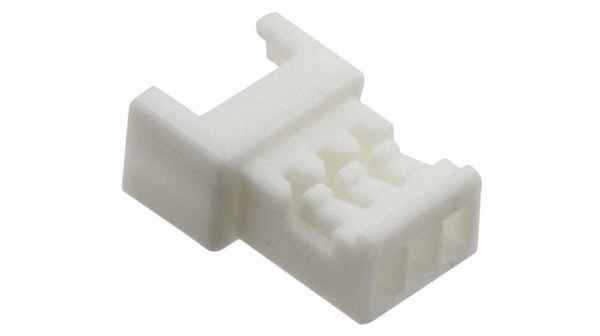

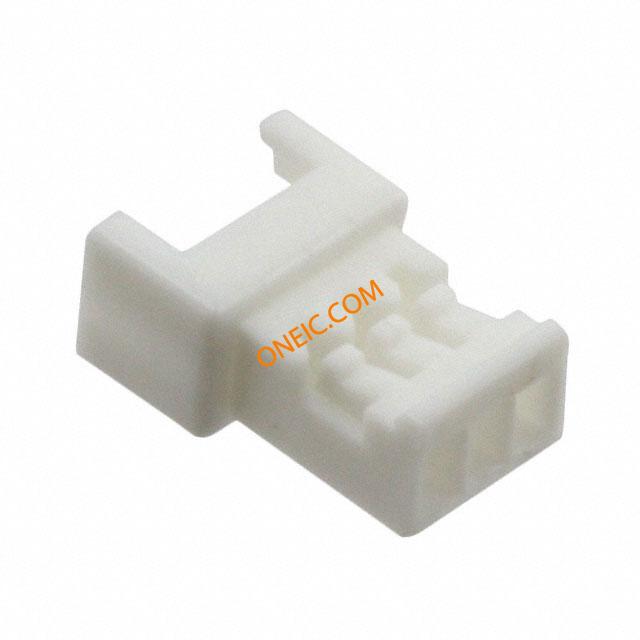

51047-0300
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 3 POS 1.25mm Crimp ST Bag CONN PLUG 3POS 1.25MM 3w WTW plug housing,1.25mm Headers & Wire Housings 3 CKT PLUG HOUSE Conn Housing M 3 POS 1.25mm Crimp ST Cable Mount Bag CONNECTOR, HOUSING, PLUG 1.25MM 3WAY Crimp housing 1.25 mm Poles 3 PicoBlade, 51047-0300, Molex Molex PICOBLADE 系列 1.25mm 节距 3 路 直 公 压接连接器外壳 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510470300 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 51047 Series | 连接器类型 - 电压输入 | Male |
机械参数
| 颜色 | Natural | 深度 | 8mm |
| 间距 | 1.25 mm | 宽度 | 3.2mm |
| 长度 | 5.5mm | 重量 | 0.000001 |
| 包装方式 | Bulk | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 接触镀层 | :- | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PET |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 51047 |
| 产品子类型 | Wire Housings | 应用细节 | Signal, Wire-to-Wire |
| 适用产品/相关产品 | PicoBlade Wire-to-Wire Plug | ||
文档与媒体
PDF 文档
PDF 文档
相关型号
0501338000
Molex, LLC
. 0501338000 - Pin Contact Tin 28-32 AWG Crimp from Molex. from now!
¥0.4862
详情
0501258000
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 26-28AWG TIN T&R
¥0.2088
详情

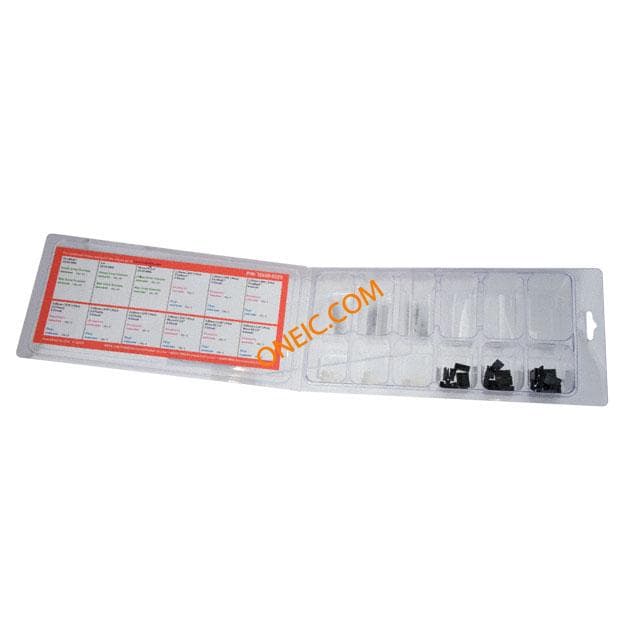

76650-0229
