点击放大查看

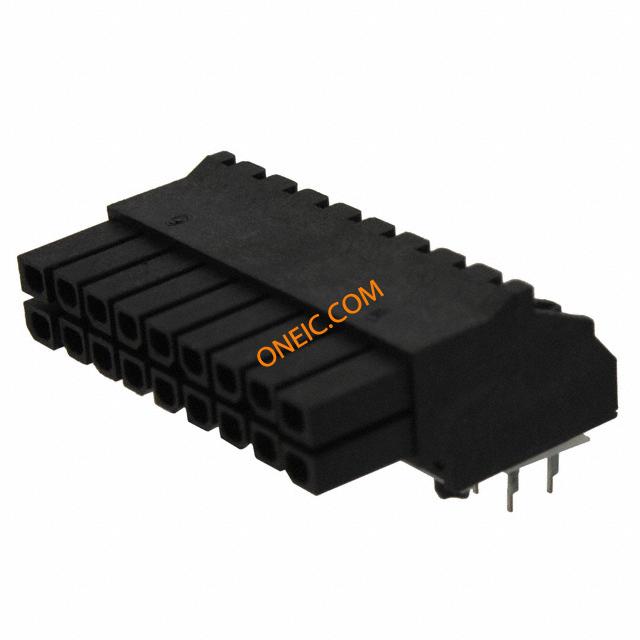

0447641802
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board RCP 18 POS 3mm Solder RA Thru-Hole Tray CONN RCPT 18POS 3.0MM R/A PEGS |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 5/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 21 |
| 间距 | 3 mm | 高度 | 10.2 |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 27.7 |
| 触点数 | 18 | 位数 | 18 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 产品特性 | Board Guide | 加载位置数 | All |
文档与媒体
相关型号
0444281806
Molex, LLC
Order Molex 0444281806 (0444281806-ND) at . , view product specifications, and order online.
0444321801
molex
Conn Wire to Board HDR 18 POS 3mm Solder ST Thru-Hole Tray MICRO-FIT BMI VERT DR HDR PEGS
0444281805
Molex, LLC
Order Molex 0444281805 (0444281805-ND) at . , view product specifications, and order online.
0444321803
molex
Conn Wire to Board HDR 18 POS 3mm Solder ST Thru-Hole Tray MICROFIT BMI VERT DR HDR PEGS
0444281803
molex
Conn Wire to Board HDR 18 POS 3mm Solder RA Thru-Hole Tray MICROFIT BMI RA DR HDR PEGS 30AU
0444281804
Molex, LLC
. 0444281804 - Connector Header Through Hole, Right Angle 18 position 0.118" (3.00mm) from Molex. from now!
0443001800
Molex, LLC
. 0443001800 - 18 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) from Molex. from now!

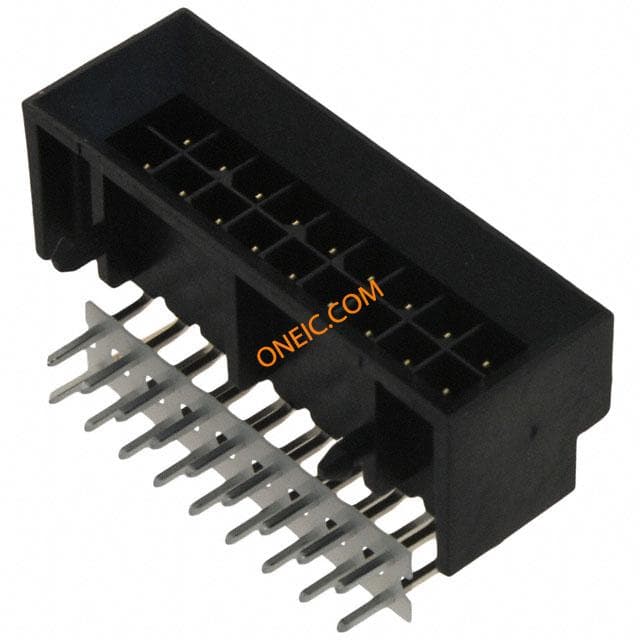

0444281802
