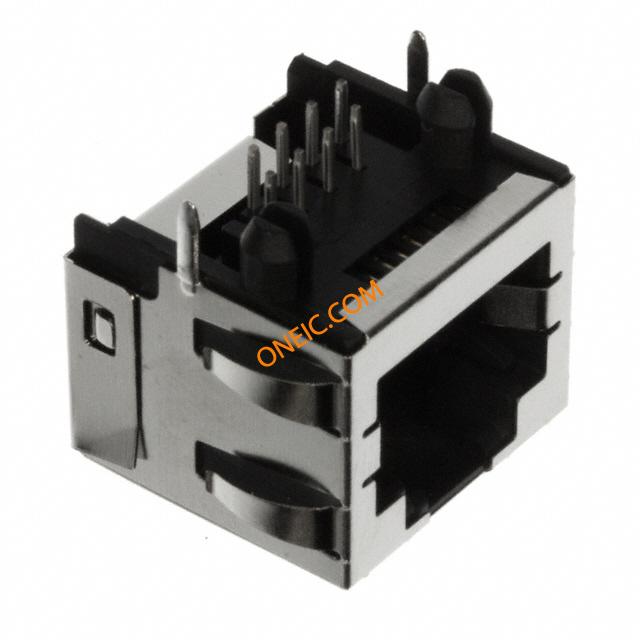

0446200002

制造商	Molex, LLC
描述	Conn RJ-45 RCP 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 3 CONN MOD JACK R/A 8P8C SHIELDED JACK, SHIELDED, 8WAY
分类	连接器解决方案模块化连接器模块化连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Trays

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
材料阻燃等级	:UL94V-0

电气参数

额定电压	:125V	接触电阻	:10mohm
介电强度	:1000V	击穿电压	:1000V
最大额定电流	:1.5A	绝缘电阻	:500Mohm
连接器类型 - 电压输入	:Cat3

机械参数

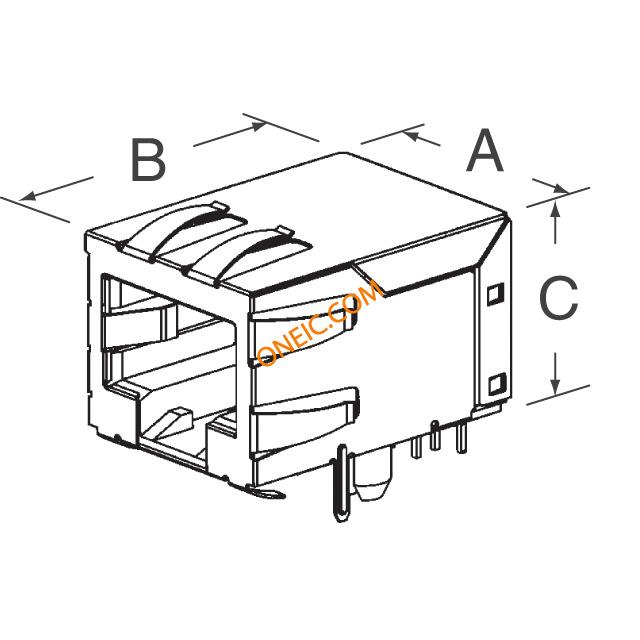

深度	:15.75mm	间距	2.04 mm
宽度	:16.38mm	长度	:13.53mm
重量	0.004	材料（通用）	:PA Polyamide (Nylon), High Temperature, Glass-filled
LED颜色	Does Not Contain LED	包装方式	Tray
屏蔽	Shielded, EMI Finger	方向	90° Angle (Right)
端接方式	Solder	安装类型	Through Hole
卡扣方向（或“接线片方向”）	Up	连接器类型	Jack
接触镀层	Gold	排数	1
触头材料	Phosphor Bronze	壳体材料	Polyamide (PA), Nylon, Glass Filled
连接器颜色	:Black	触点数	:8
接触件端接	:Through Hole Right Angle	位数	:8
接触镀层厚度	50µin (1.27µm)	外壳与棱镜材料	:PA Polyamide (Nylon), High Temperature, Glass-filled

产品信息

类型	RJ-45	连接器性别	RCP
系列	:44620	产品特性	Board Lock, Keyed
端口数	1	位置/触点数量	8p8c (RJ45, Ethernet)

环境参数

额定等级	Cat3	插拔次数	:500
工作温度	-40°C ~ 85°C

文档与媒体

PDF 文档
