点击放大查看

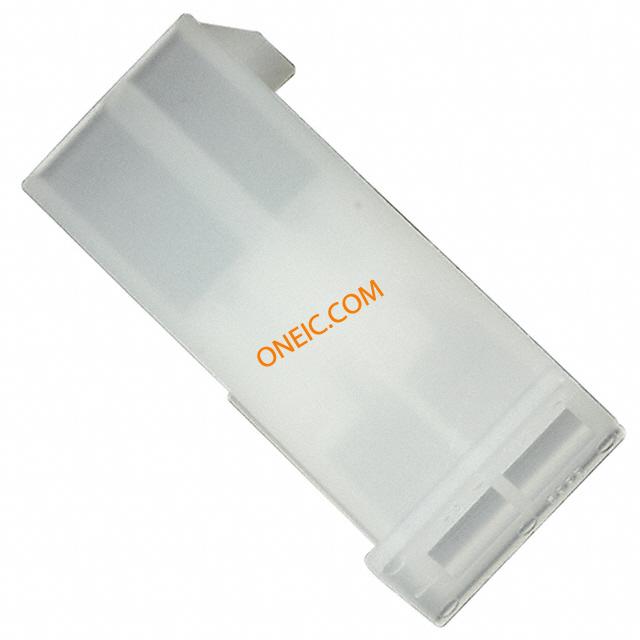

0039013023
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 2 POS Crimp ST Bag Conn Housing M 2 POS Crimp ST Cable Mount Bag CONN PLUG 2POS VERT DUAL |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 12/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 颜色 | Natural | 深度 | 23.9 mm |
| 间距 | 4.2 mm | 包装方式 | Bag |
| 排间距 | 0.165" (4.20mm) | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.165" (4.20mm) |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 排数 | 2 | 壳体材料 | Nylon 6/6 |
| 总长度 | 7.4 mm | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mini-Fit® Jr™ 5559 |
| 行业别名 | 39-01-3023, 39013023 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -40C to 105C | ||
