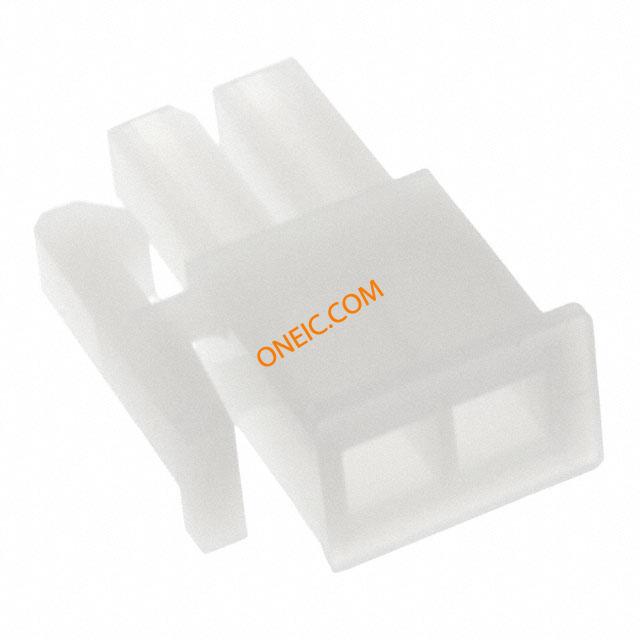

0039013022
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS Crimp ST Cable Mount Bag CONN RECEPT 2POS VERT DUAL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 12/Contact A | 最小输入电压 | 600VDC|600VAC |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 4.2 mm | 高度 | 7.39 mm |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 6/6 | 总长度 | 14.4 mm |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | ||
环境参数
| 工作温度 | -40C to 105C | ||
