点击放大查看

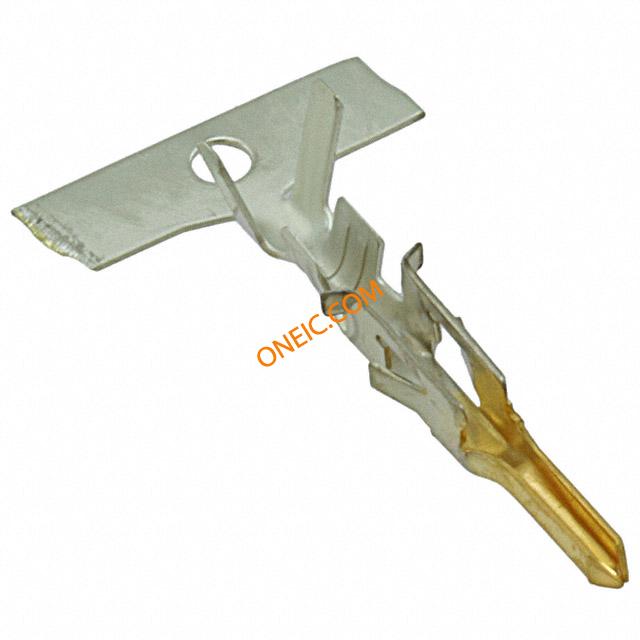

0039000075
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN PIN TERM 18-24AWG CRIMP 0039000075 |
| 分类 |
商业参数
| 其他名称 | WM6891CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 3.6 | 高度 | 4.5 |
| 包装方式 | Reel | 导线线规 | 18-24 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 触头材料 | Brass |
| 总长度 | 16.8 | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
环境参数
| 工作温度 | 105 | ||
