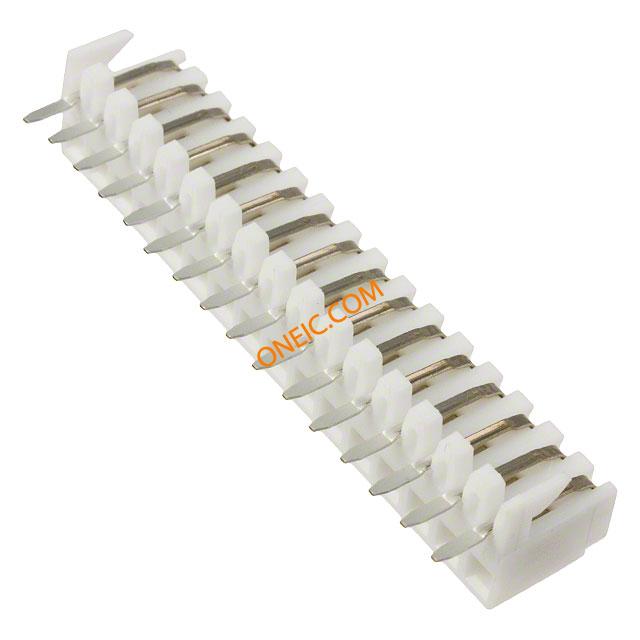

0022173162

制造商	Molex, LLC
描述	Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Tray RCPT 16POS KK .100 PCB GOLD
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Trays

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20	最大额定电流	2.5/Contact
最小输入电压	250V

机械参数

颜色	White	深度	7.7
间距	2.54 mm	高度	7.9
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle, Bottom Entry
接触镀层	Gold Over Nickel	排数	1
触头材料	Brass	壳体材料	Nylon
总长度	40.54	触点数	16
位数	16	接触镀层厚度	15µin (0.38µm)

产品信息

类型	Socket Strip	连接器性别	RCP
加载位置数	All

环境参数

防护等级

工作温度

-40°C ~ 80°C
