22-28-4166

制造商	Molex, LLC
描述	Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 16POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR VT 16P 240/125 30AU
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	其他名称	0022284166
零件号别名	0022284166 42375-0086	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	750

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

4 A

机械参数

颜色	Black	间距	2.54 mm
包装方式	Bulk	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole
连接器类型	Header, Unshrouded, Breakaway	接触镀层	Gold Over Nickel
排数	1	触头材料	Brass
壳体材料	Thermoplastic	端接样式	Through Hole
触点数	16	位数	16
接触长度 - 配合	0.240" (6.10mm)	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	42375	产品子类型	Headers
加载位置数	All

相关型号

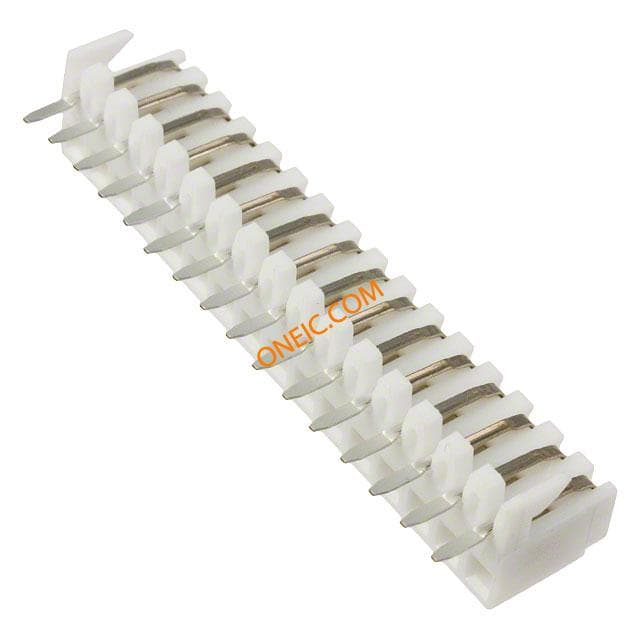

0022173162
