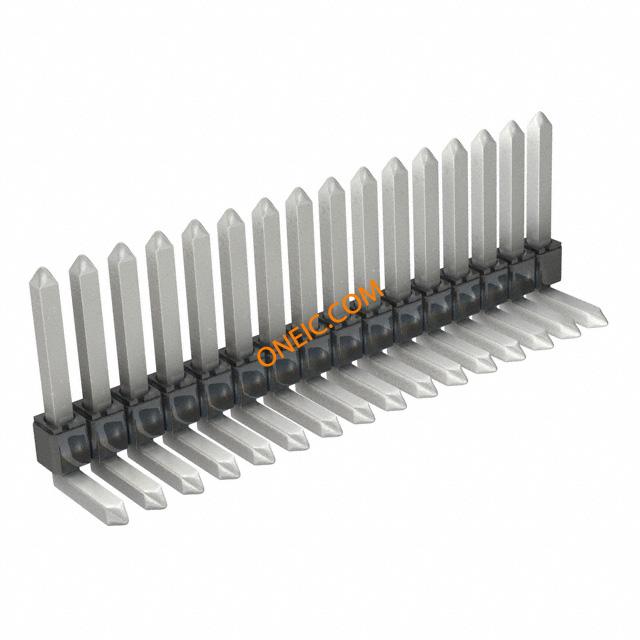

点击放大查看

0022288161

制造商	Molex, LLC
描述	Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 16POS .100 R/A TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20	最大额定电流	4/Contact
最小输入电压	250V

机械参数

颜色	Black	深度	12.3
间距	2.54 mm	高度	2.49
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	Black
安装类型	Through Hole	连接器类型	Header, Unshrouded, Breakaway
接触镀层	Tin Over Nickel	排数	1
触头材料	Brass	壳体材料	Thermoplastic
总长度	40.64	触点数	16
位数	16	接触长度 - 配合	0.324" (8.23mm)
接触镀层厚度	100µin (2.54µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
加载位置数	All

文档与媒体

PDF 文档

0022288161_PCB_HEADERS.pdf
