点击放大查看

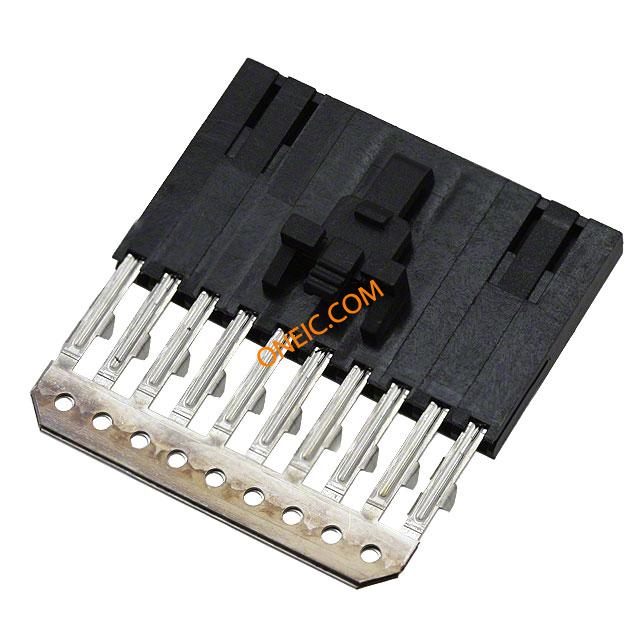

0015388100
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector F 10 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 10POS .100 TIN |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 接触电阻 | 10 |
| 最大额定电流 | 2/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 15.24 |
| 间距 | 2.54 mm | 高度 | 6.6 |
| 包装方式 | Tube | 端接方式 | IDT |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 25.37 |
| FFC/FCB厚度 | 0.30mm | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Latch Lock | ||
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
0705530009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A GOLD
0705430044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 10POS .100 TIN
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0705450044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 10POS .100 VERT 15AU
0701070009
molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING MALE 10POS .100
0705550044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 15AU
0622007800
molex
MANUAL PRESS FOR MICRO-D BACKSHELL CRIMP TOOL KIT, 25 CIRCUITS Standard Manual Press For FFC ARBOR PRESS W/ FFC TOOLING
0015912105
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
70553-0044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 10POS .100 TIN Headers & Wire Housings 2.54MM HDR 10 CKT Right Angle
70555-0009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A TIN Headers & Wire Housings 2.54MM SR RA 10P HDR SN SHROUDED

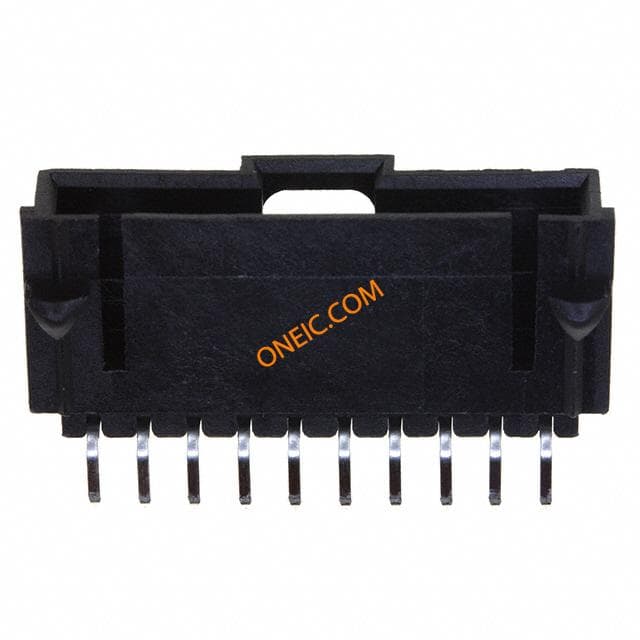

0015913104
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
0705530114
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 30AU
0705430009
Molex Inc
CONN HEADER 10POS .100 VERT GOLD Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

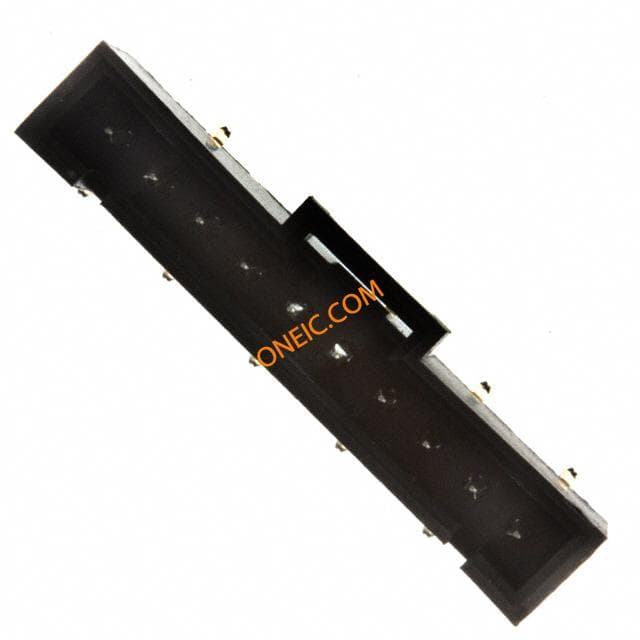

74099-0010
