点击放大查看

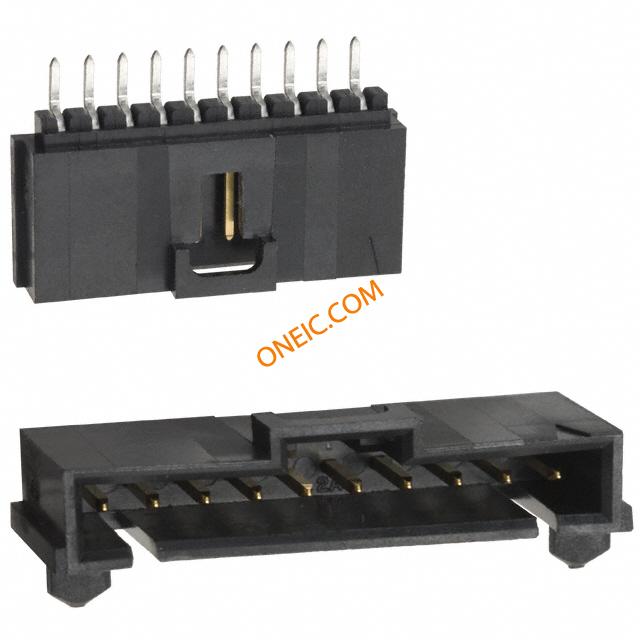

0015912105
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD |
| 分类 |
商业参数
| 标准包装数量 | 540 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 13.59 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.99 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 29.21 | 触点数 | 10 |
| 位数 | 10 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 防护等级 | - | 工作温度 | - |
