点击放大查看

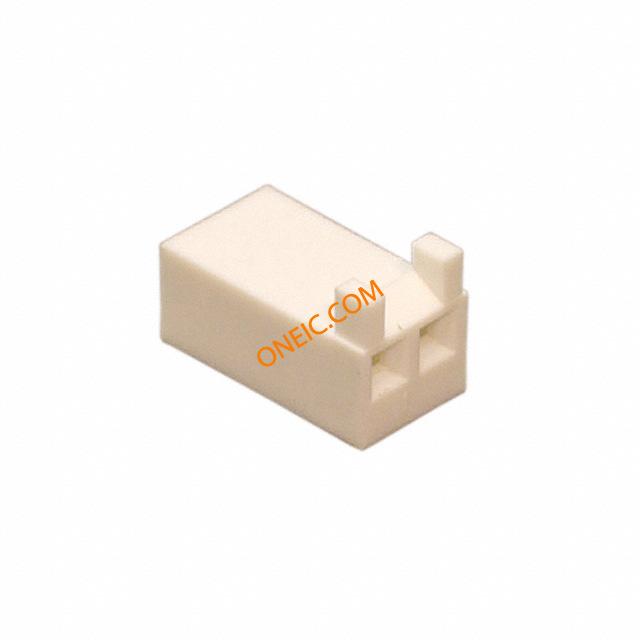

0009508023
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .156 W/POLAR |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 10,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 7/Contact | 最小输入电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 15.88 |
| 间距 | 0.156" (3.96mm) | 高度 | 8.07 |
| 包装方式 | Bag | 触头类型 | Non Gendered |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 1 | 壳体材料 | Polyester |
| 总长度 | 8.79 | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Polarizing Key |
| 行业别名 | 09-50-8023, 09508023, 9508023 | ||
