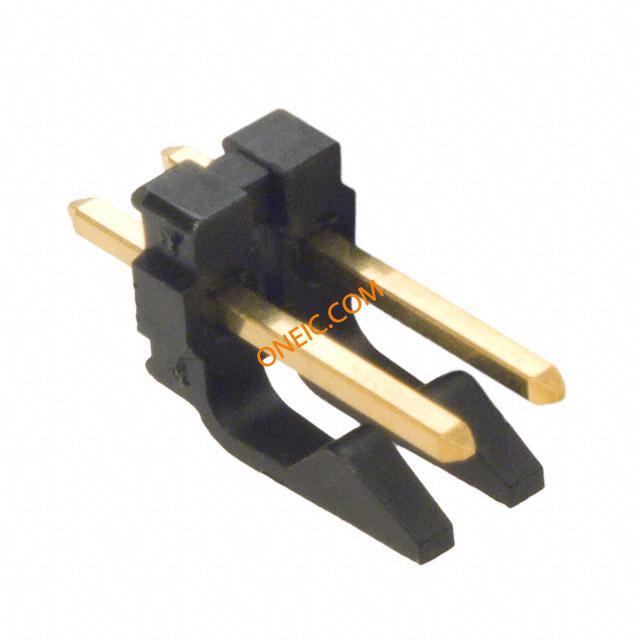

点击放大查看
0026482025
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 2POS .156 VERT GOLD Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Bulk |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 7/Contact A |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 9.02 mm |
| 间距 | 0.156" (3.96mm) | 高度 | 14.68 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 7.87 mm | 触点数 | 1 |
| 位数 | 2 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 26-48-2025, 26482025 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
