0026481021
| 制造商 | Molex, LLC |

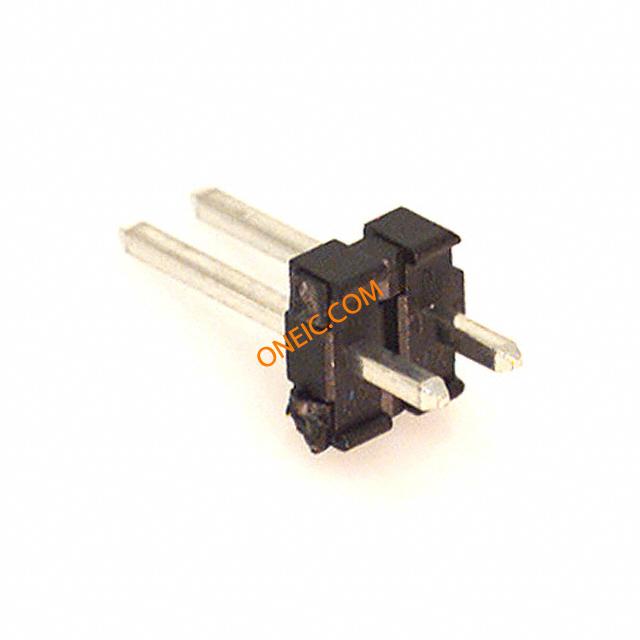

| 描述 | CONN HEADER 2POS .156 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 47 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.156" (3.96mm) |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin |
| 排数 | 1 | 位数 | 2 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 60µin (1.52µm) |
产品信息
| 行业别名 | 26-48-1021, 26481021 | 加载位置数 | All |
