0009503041

制造商	Molex, LLC
描述	Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .156 W/RAMP
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	45 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

7/Contact A

最小供电电压

250VAC

机械参数

颜色	Natural	深度	15.88 mm
间距	3.96 mm	高度	6.4 mm
包装方式	Bag	触头类型	Non Gendered
外壳颜色	Natural	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Nylon
总长度	15.75 mm	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	行业别名	09-50-3041, 09503041, 9503041

环境参数

工作温度

0C to 75C

文档与媒体

在线文档

Datasheets

PDF 文档

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4655

详情

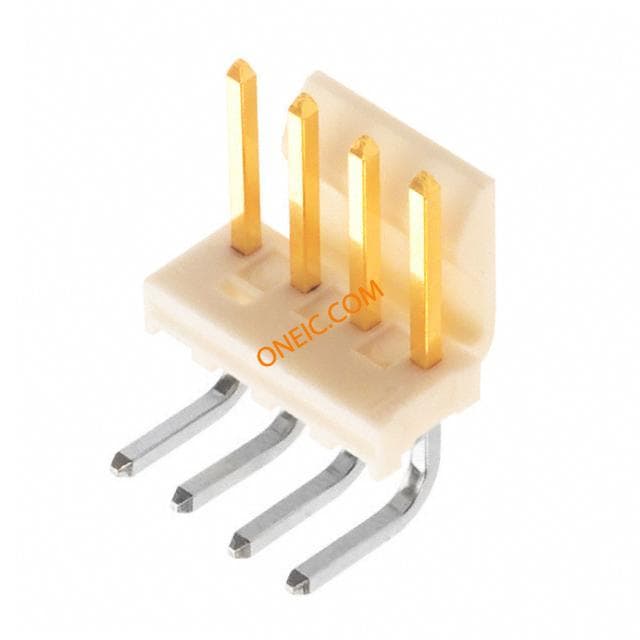

0026615040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A GOLD

¥8.6580

详情

0026614040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 4POS .156 VERT GOLD

¥4.4114

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.6036

详情

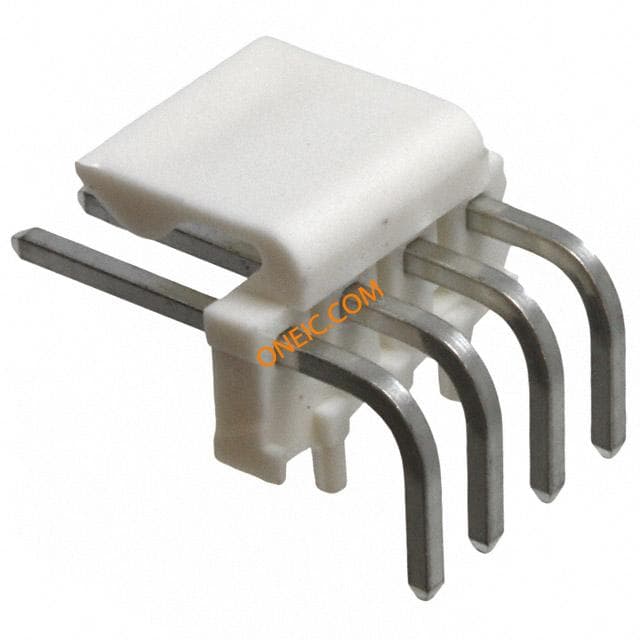

0026645040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag 156 HDR FRLK RTAN PEG 4CKT TIN

¥1.9152

详情

0026605040

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A TIN

¥1.3104

详情

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

¥0.2801

详情

0026482046

molex

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 4POS .156 R/A GOLD

¥6.8033

详情

暂无图片

0008600004

molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN

¥0.2513

详情

暂无图片

26-48-2044

Molex

Headers & Wire Housings RA B/A HDR 4P polarizing wall CONN HEADER 4POS .156 R/A GOLD

详情

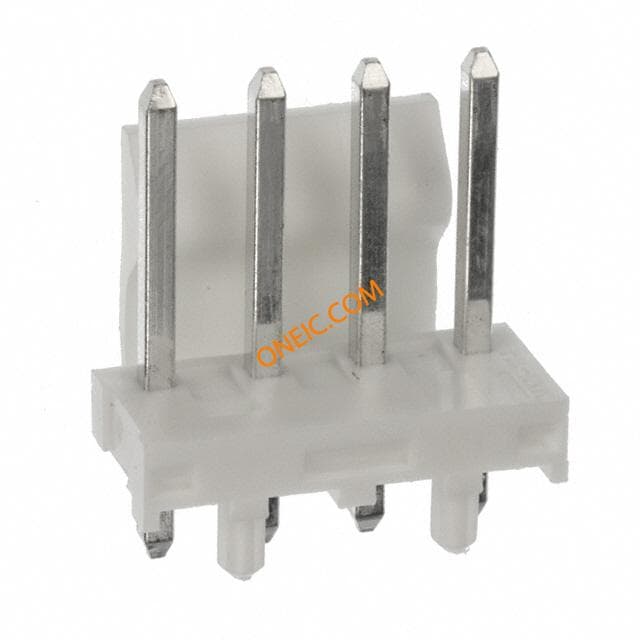

26-64-4040
