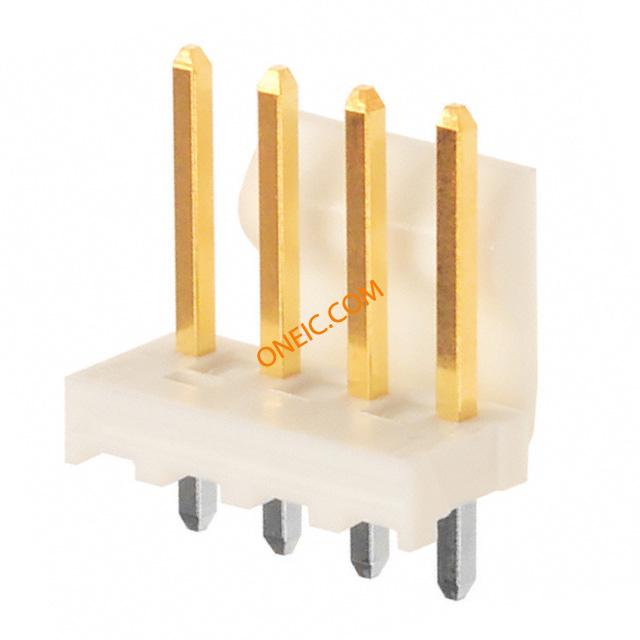

点击放大查看
0026614040
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 4POS .156 VERT GOLD |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6 mohm | 最大额定电流 | 7/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 10.01 mm |
| 间距 | 3.96 mm | 高度 | 14.73 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 15.7 mm | 触点数 | 4 |
| 位数 | 4 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 26-61-4040, 26614040 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
