点击放大查看

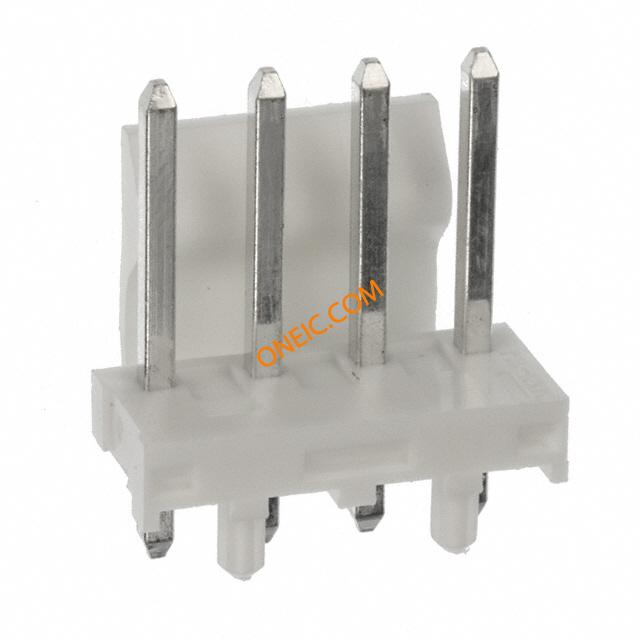

26-64-4040
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 4POS .156 VERT TIN Headers & Wire Housings HEADER VERTICAL 4P friction lock WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026644040 42491-0004 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 42491 Series | 额定电压 | 250 V |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 42491 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
相关型号
0009503041
molex
Conn Housing RCP 4 POS 3.96mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .156 W/RAMP
0009523045
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009482047
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS TIN PCB
0009482049
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 4POS TIN PCB
0009481045
Molex, LLC
Buy now, ships today. 0009481045 - 4 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. View datasheets, pricing and availability from DigiKey now!
0009508041
molex
Conn Housing RCP 4 POS 3.96mm Crimp ST Bag CONN HOUSING 4POS .156 W/RAMP
0009485045
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS GOLD PCB
0009482042
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 4POS TIN PCB
0009523048
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009482043
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS TIN PCB
0009521041
molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009508043
Molex
Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .156 W/POLAR Connector
0009930400
Molex
Conn Housing F 4 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 4POS
0009624047
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS GOLD
0009485046
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 4POS GOLD PCB
0009482040
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009482045
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 4POS TIN PCB
0009482041
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB
0009521046
Molex
Conn Socket Strip RCP 4 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 4POS TIN PCB

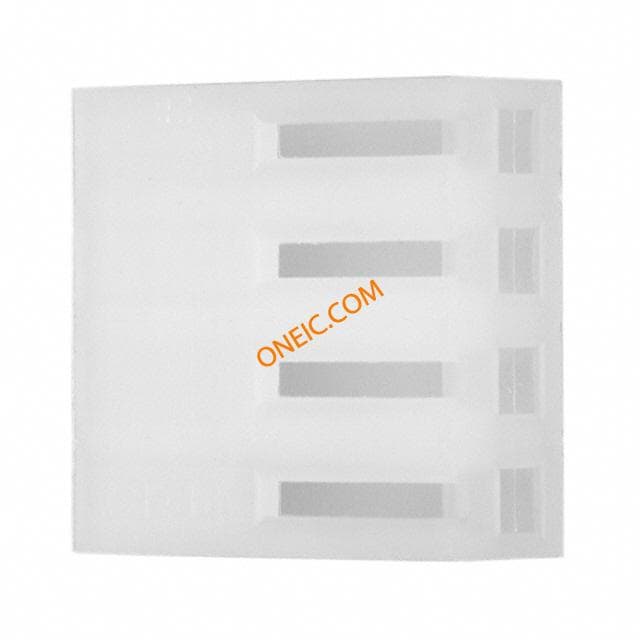

09-50-7041
