点击放大查看

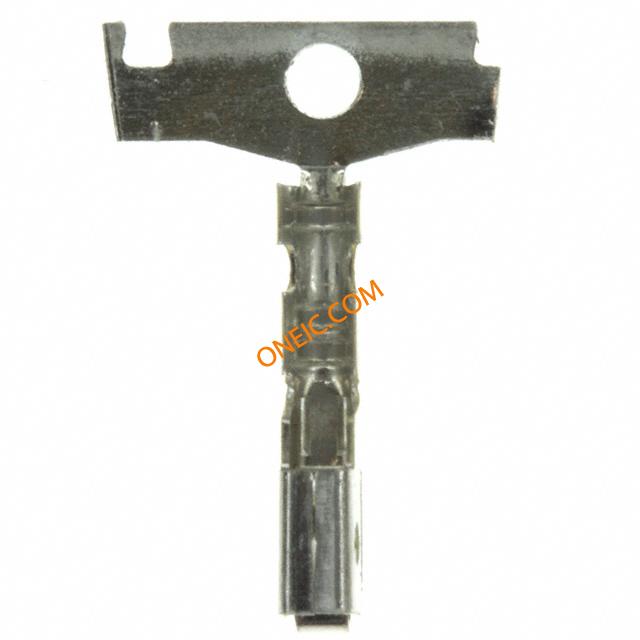

0008500004
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM 24-30AWG HI PRESS TIN |
| 分类 |
商业参数
| 交货时间 | 365 Days | 其他名称 | WM2755CT |
| 子类别 | Connector Contact | 标准包装数量 | 5,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 2.5 |
机械参数
| 深度 | 2 | 高度 | 3.05 |
| 包装方式 | Reel | 导线线规 | 24-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Tin Over Copper | 触头材料 | Brass |
| 总长度 | 11.2 | 接触件端接 | Crimp |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 连接器性别 | SKT | 行业别名 | 08-50-0004, 08500004, 8500004 |
| 适用产品/相关产品 | 0050291900 | ||
