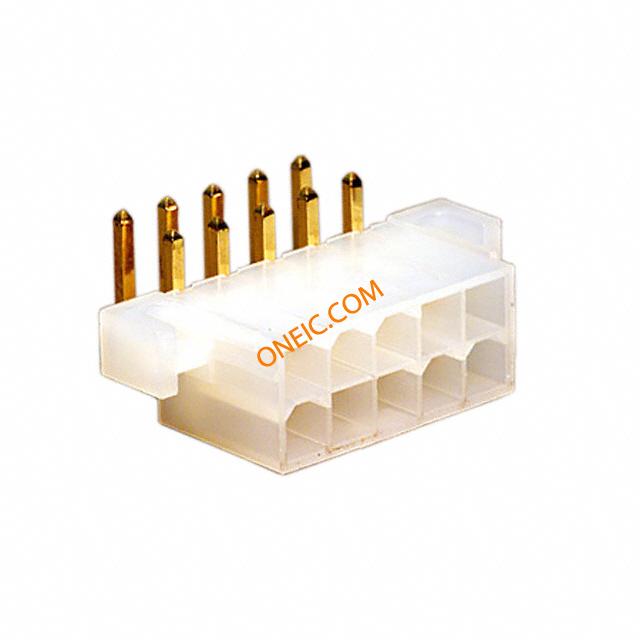

39-29-5103
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 10POS 4.2MM R/A GOLD Headers & Wire Housings HOUSING ASSEMBLY Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Bag |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039295103 5569-10AG1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 0.165" (4.20mm) |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Pin Header | 系列 | 5569 |
| 产品子类型 | Header Assemblies | 加载位置数 | All |
