点击放大查看
09-50-8041
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 4POS .156 W/RAMP 3.96mm,KK156,housing,f/ramp,nylon,4way Headers & Wire Housings HSG 4P W/LKG RAMP UL94V-0 Conn Housing RCP 4 POS 3.96mm Crimp ST Bag HOUSING, 3.96MM, 4WAY Multipole Connector Number of Contacts:4 .156 KK Crimp Housing; 4 Circuit Molex KK 396 系列 3.96mm 节距 4 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0009508041 41695-N-B04 9508041 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366990 | ||
电气参数
| 量程（°/s） | :MOLEX - KK 41695 Series | ||
机械参数
| 深度 | 15.88mm | 间距 | 3.96mm |
| 宽度 | 8.07mm | 长度 | 16.71mm |
| 重量 | 0.014 | 安装类型 | Straight |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | PET | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | :- | ||
产品信息
| 连接器性别 | Female | 系列 | 41695 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | KK Connector | ||
文档与媒体
相关型号
08-50-0107
molex
Contact SKT Crimp ST Cable Mount Reel Crimp,3.96mm,22-26 AWG,brass,tin,reel Headers & Wire Housings KK TERM 22-26G Reel of 7000 CONTACT, FEMALE, 26-22AWG, CRIMP Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点
08-50-0106
molex
Contact SKT Crimp ST Cable Mount Bag KK crimp terminals,18-20awg Headers & Wire Housings TERMINAL 24-18 BULK CONTACT, CRIMP, PLUG, 24-18AWG, PK100 CRIMP PIN, 18-24AWG, PK100 CONTACT, CRIMP, PIN, 24-18AWG Contact; Socket; For0.156In.KKSeries; 24-18AWG; Crimp; TinPlat; BrassCnt; 2478Series Molex KK 396 系列 母 压接接线端子, 压接, 镀锡触点
09-50-8041
Molex Connector Corporation
CONN HOUSING 4POS .156 W/RAMP 3.96mm,KK156,housing,f/ramp,nylon,4way Headers & Wire Housings HSG 4P W/LKG RAMP UL94V-0 Conn Housing RCP 4 POS 3.96mm Crimp ST Bag HOUSING, 3.96MM, 4WAY Multipole Connector Number of Contacts:4 .156 KK Crimp Housing; 4 Circuit Molex KK 396 系列 3.96mm 节距 4 路 直 母 压接连接器外壳

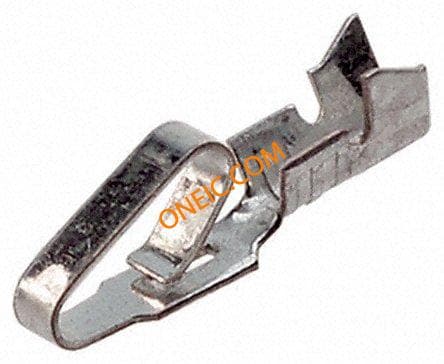

08-52-0072
