点击放大查看

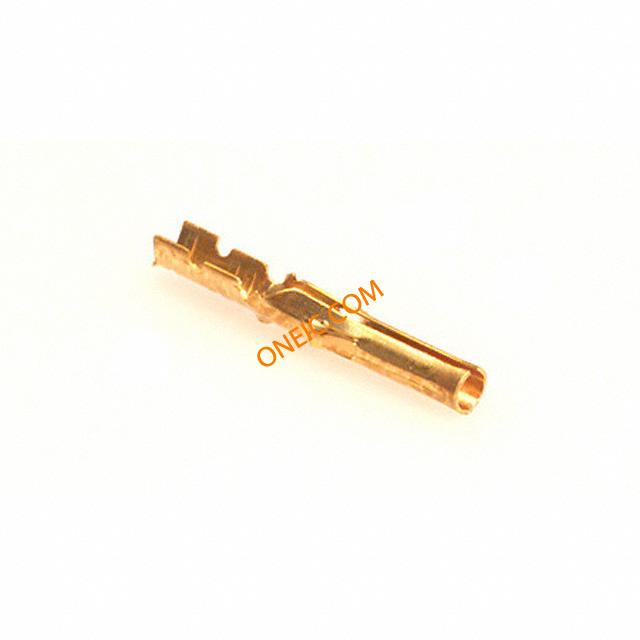

02-06-5135
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 24-30AWG GOLD Crimp 1.57mm,female,24-30 AWG,gold,bag Pin & Socket Connectors CRIMP SKT BULK 24-30 gold Contact SKT Crimp ST Cable Mount Bag CONTACT, FEMALE, 30-24AWG, CRIMP 062 Female Term Loose Brs 15Au 24-30 Molex STANDARD .062" 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0002065135 1855-(P550)L 2065135 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 24-30 AWG | 端接方式 | Crimp |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | :Contact, Crimp | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - AWG | 30-24 |
产品信息
| 类型 | Power | 连接器性别 | Female |
| 系列 | 1855 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Standard .062" Pin & Socket Connectors | ||
