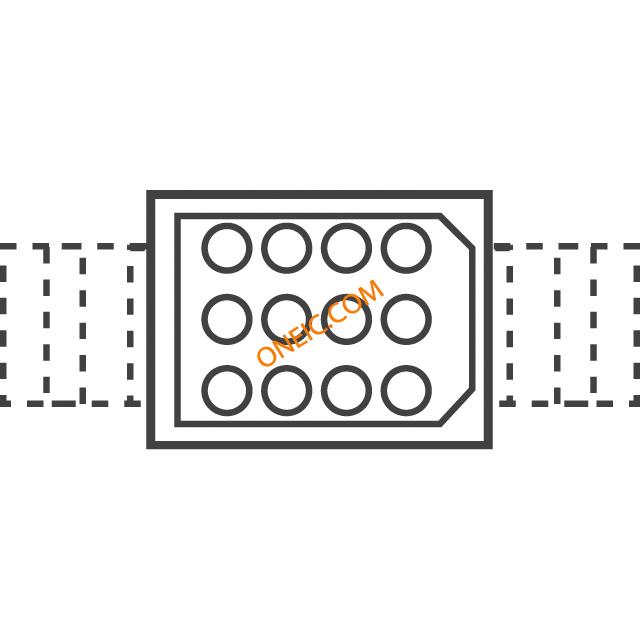

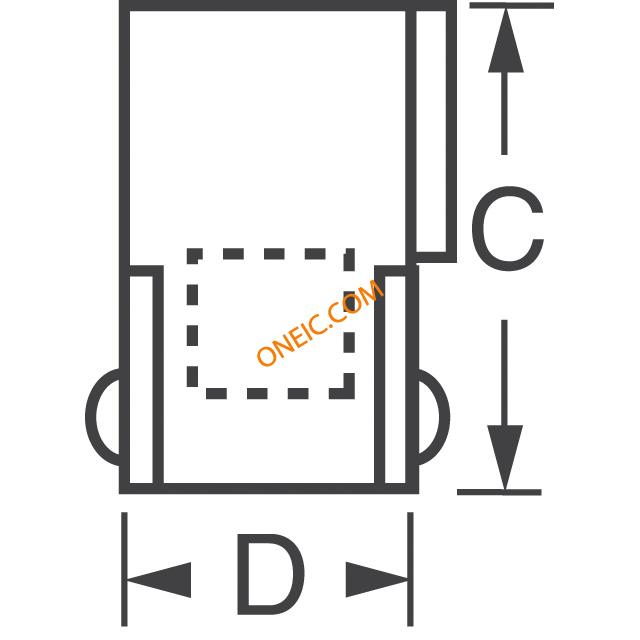

03-06-1122
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 12 POS 3.68mm Crimp ST Bag CONN RECEPTACLE 12POS .062 Molex 3.68mm 12 Way 3 Row Straight Female Housing Receptacle Pin & Socket Connectors 12C RECEPTACLE HOUSING, RECEPTACLE, 3 ROW, 12WAY, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 12 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 12 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061122 1625-12R1 3061122 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5A |
机械参数
| 颜色 | Natural | 间距 | 3.68 mm |
| 高度 | 12.4mm | 重量 | 0.002 |
| 包装方式 | Bulk | 排间距 | 0.145" (3.68mm) |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 3 |
| 壳体材料 | Nylon | 总长度 | 0.78 " |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 安装孔直径 | 0.795×0.563 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Receptacle Housings | 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
