点击放大查看

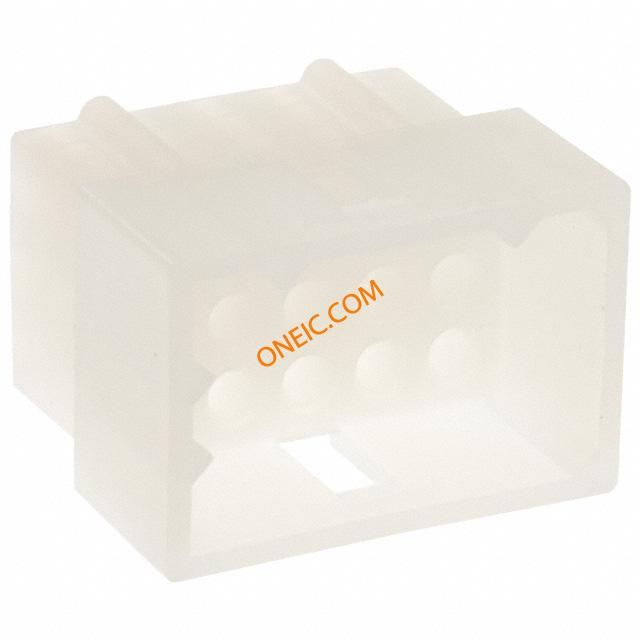

03-06-2152
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Male Housing Receptacle Pin & Socket Connectors 15 CIRCUIT PLUG Conn Housing PL 15 POS 3.68mm ST Bag 1.57mm Diameter Standard .062" Pin and Socket Plug Housing, 15 Circuits, without Mounting Ears CONNECTOR, PLUG MULTIPOLE TERMINAL HOUSE; MINI; PLUG W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003062152 03-06-2152-PB 1625-15P1 3062152 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | 5 |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 认证机构标志 | CSA, UL | 材料阻燃等级 | UL94V-2 |
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Natural | 间距 | 0.145" (3.68mm) |
| 高度 | 15mm | 重量 | 0.00227 |
| 包装方式 | Bulk | 排间距 | 0.145" (3.68mm) |
| 端接方式 | Crimp | 触头类型 | Male or Female |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Plug | 紧固类型 | Detent Lock |
| 安装样式 | Free Hanging | 排数 | 3 |
| 壳体材料 | Nylon | 总长度 | 0.75 " |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Natural | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 安装孔直径 | 1.032×0.62 " | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug |
| 连接器性别 | Male | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Plug Housings | 适用产品/相关产品 | :1560, 1561, 1786, 1854 Crimp Terminals |
环境参数
| 工作温度 | -40 to +105 °C | ||
文档与媒体
相关型号
0002061101
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0002061132
Molex, LLC
. 0002061132 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
0002062101
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
0002062103
Molex, LLC
. 0002062103 - Pin Contact Tin 18-24 AWG Crimp Power from Molex. from now!
0002067103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER TIN PCB Conn Contact F 1 POS Solder ST Thru-Hole Bag
0002065100
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD
0002068103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE SOLDER TIN PCB Conn Contact M 1 POS Crimp ST Cable Mount Bag
02-06-5102
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD Crimp term 1.57mm,female,18-24AWG,Au,bag Pin & Socket Connectors SOCKET 18-24AWG BULK Molex STANDARD .062" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-06-7104
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors PC TAIL TERMINAL female
0002061131
Molex, LLC
. 0002061131 - Socket Contact Tin 24-30 AWG Crimp Power from Molex. from now!
02-06-6135
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG GOLD Crimp 1.57mm,male,24-30 AWG,gold,bag Pin & Socket Connectors TERMINAL 24-30 BULK CONTACT, MALE, 30-24AWG, CRIMP 062 Male Term Loose 15 SAu 24-30 Molex STANDARD .062" 系列 公 压接接线端子, 压接, 镀金镀镍触点
0002061103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN
0039000336
Molex
Contact PIN Crimp ST Cable Mount Reel .062DIA CRIMP PIN
0002062132
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 24-30AWG TIN
0002065103
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG GOLD
03-06-1152
Molex Connector Corporation
CONN RECEPTACLE 15POS .062 Molex 3.68mm 15 Way 3 Row Straight Cable Mount Female Housing Receptacle Pin & Socket Connectors 15C RECEPTACLE Conn Housing RCP 15 POS 3.68mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, NYLON TERMINAL HOUSE; MINI; RECEPTCL W/DTENT WNDWS; 15 CIRCUITS Molex STANDARD .062" 系列 3 行 3.68mm 节距 15 路 直 母 电缆安装 压接连接器外壳

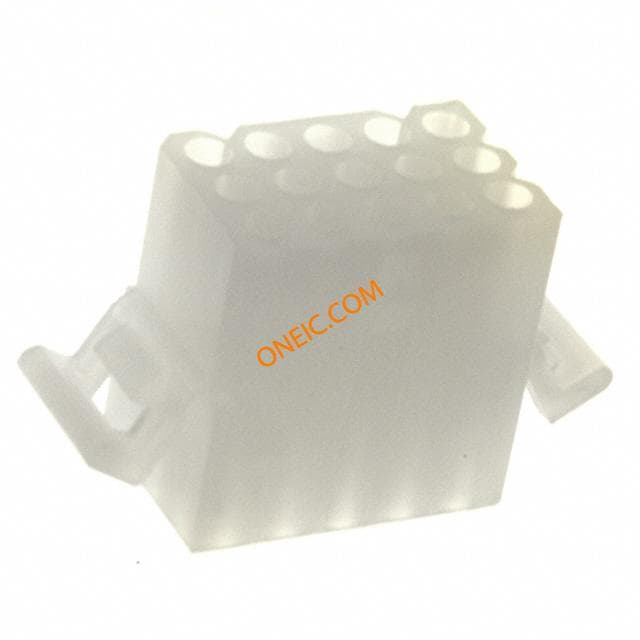

03-06-6155
