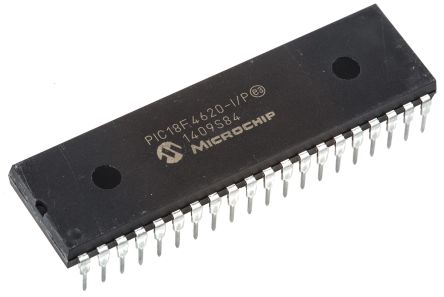

PIC18F4620-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 64KB Flash 5V 40-Pin PDIP Tube 8-bit Microcontrollers - MCU 64KB 3968 RAM 36 I/O 8 bit MCU PDIP40 IC MCU 8BIT 64KB FLASH 40DIP PIC18F4620-I/P, 8 bit Microcontroller PIC 40MHz 64kb Flash, 3986B RAM, I2C SPI 40-Pin PDIP IC MCU, 8BIT, PIC18, 40MHZ, DIP40 IC, 8BIT FLASH MCU, TUBE10, 18F4620 40-Pin,64KBFlash,3968RAM,36I/O PIC microcontroller; EEPROM:1024B; SRAM:3968B; 40MHz; DIP40 Microcontroller 8 Bit DIL-40, PIC18F4620-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 64 kB、1024 B ROM 闪存, 3986 B RAM, 40针 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 110 | 单位包装 | 10 |
| 其他名称 | PIC18F4620IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 汽车级 | NO | 零件状态 | :18F4620 |
| 抗辐射加固 | No | 无铅定义 | RoHS-conform |
| 认证机构 | No | ||
电气参数
| 输入端 | 36 | 转速 | 40 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 64KBytes |
| 以太网 | 0 | RAM 大小 | 3986 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 40 MHz | 接口 | SPI/I2C/USART |
| 时钟速率 | 40 MHz | 比较器数量 | 2 |
| EEPROM容量 | 1024Byte | 存储器容量 | 3968 B |
| 存储器类型 | FLASH | 显示类型 | 0 |
| I/O 数量 | 36 | 电压范围 | 2-5.5V |
| 位数 | 10 | 额定电压 | 4.2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :40MHz |
| 数据转换器 | A/D 13x10b | 最大频率 | 40MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 5 V | 数字I/O线数 | 36pins |
| 分辨率（位） | 10Bit | 串行接口 | 1 |
| 通道数量 | 13 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 1KBytes | 程序存储器大小 | 64 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 13 |
| 最小输入电压 | 5.5V | 8位定时器数量 | 1 |
| 最小供电电压 | 4.2 V | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 1000 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 4.2 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.58in | 高度 | 0.195in |
| 长度 | 2.095in | 重量 | 0.02 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :40 | 封装形式 | 40PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 包装数量 | PDIP | 尺寸/外形 | 2.095 x 0.58 x 0.195in |
| 位数 | 40 | 供应商器件封装 | 40-PDIP |
| 核心数/总线宽度 | 8 Bit | 脉冲宽度失真（最大） | 1(CCP), 1(ECCP) |
产品信息
| SPI | 1 | SPG | 130 |
| USB | No | 类型 | PIC microcontroller |
| 系列 | PIC18 | 协议 | 1 |
| 匹配码 | PIC18F4620-I/P | CAN编号 | 0 |
| 闪存大小 | :64KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 13-chx10-bit | 外设 | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 4 | 控制器系列 | :PIC18F4xxx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC18 |
| 使用的IC/零件 | :PIC18F4620-I/P | DigiKey可编程 | Yes |
| 微控制器特性 | :EEPROM, ADC, Comparators, CCP/ECCP, ECAN, BOR, PWRT, POR, WDT, PSP, MSSP | A/D转换器数量 | :13 |
环境参数
| 温度范围 | :Industrial | 测试温度 | -40°C |
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
